15" Operator Touch Panel

Enlarge

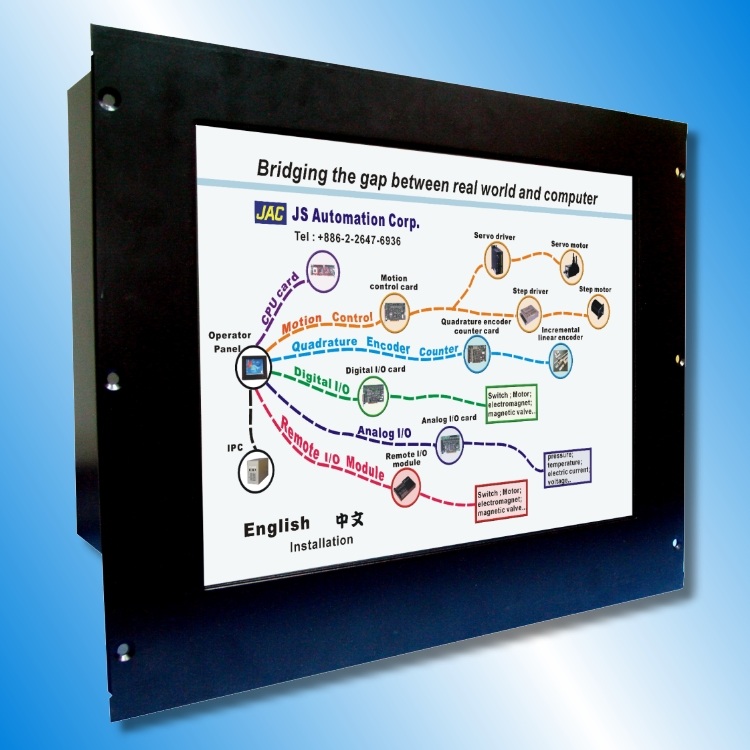

15" Operator Touch Panel

Modeeel: TPC-8653

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*3 PCI bus slots
*5 wire resistance touch panel
*Pentium 4 / Celeron 2.8G CPU
*Full peripheral support : LAN, USB, VGA, IDE, printer port, COM port and Ac97 Audio
*External Terminal Connector for LED & Power Switch

Specifications

*CPU : Socket 478 Pentium IV/Celeron up to 2.8GHz/400/533MHz
*System Memory : DDR 200/266/333, 512M(standard) up to 2G
*Display : 15” AUO LCD Panel
*Storage : 2.5” HDD
*Resolution : 1024 x 768 dpi
*I/O :
1 x VGA
2 x PS/2 Keyboard and mouse connectors
1 x LAN 10/100 Mbps Ethernet Ports
4 x USB 2.0 (2 x rear connector, 2 x pin header)
4 x RS-232 (2 x rear connector, 2 x pin header)
AC97 Audio
External Terminal connector for LED and Switching button
*Extension : 3 x PCI expansion slot
*Watchdog Timer : Software Programmable
*Construction :
Black steel front side panel
Black aluminum back cover
*Operation Temperature : 0 OC ~ +55 OC
Power Supply
*100~230Vac MINI ATX 200W Power supply
Touch Panel
*15”5 wire resistive touch screen, communicate via USB
