Mokon Servo Driver / Motor

Enlarge

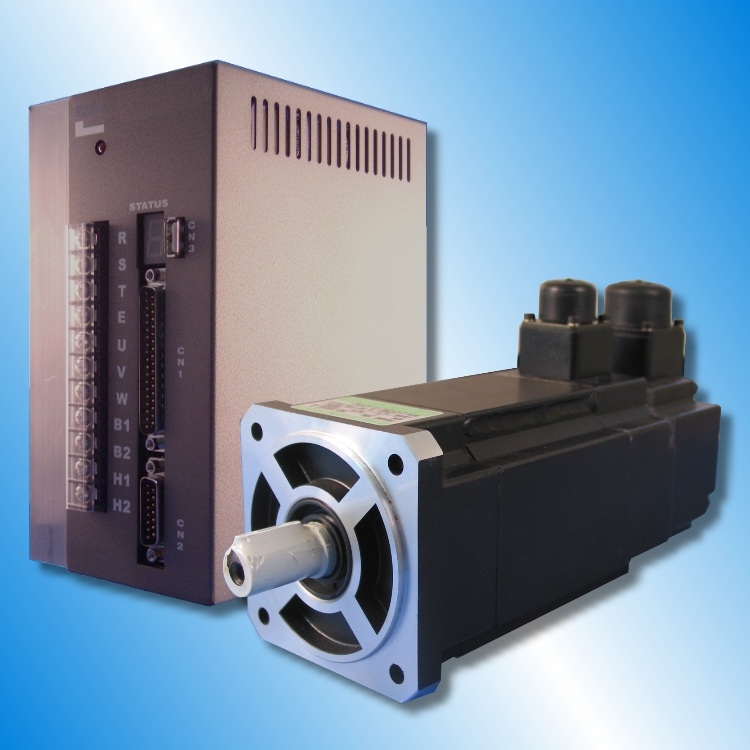

Mokon Servo Driver / Motor

Modeeel: YPV Servo Driver / Motor

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*Embedded floating point DSP
*High bandwidth and high response
*Easy servo parameters setting via RS-232 communication with Mokon PC software
*Three section position-commanded electronic gear from I/O signal
*On the fly change of speed and position mode
*Multi-purpose type command input to support most of motion control applications

Matched Motor: from 120W to 22KW
Product information - please refer to:
http://www.automation.com.tw/common/entry_mation.htm

Specifications

*System Overload Capacity : 150% 1min
*Discharge Transistor : integrated
*Protective Function : Over Current, Over Voltage, Low Voltage, Over *Load, Over Temperature, Encoder Error, Over Speed
*Feedback Output : 1024P/R, 2048P/R, 2500P/R, 5000P/R
*Heat-Dissipation Method : Natural ventilation
Speed Control
*Control Method : Sine PWM Current Control
*Control Ratio : 3000 : 1
*Speed Command : 0 ~ 10V / 0 ~ Rated Speed
*Speed Variability Ratio : Load Variable 0 ~ 100% / Rated Speed ± 0.1%
*Acceleration And Decelertion Method : S type or Linear type profile
*Torque Limit : 0~10V / 0~Max. Torque
Position Control
*Position Command : A/B, CW / CCW, PULSE / DIR
*Position Command Output Bandwidth :
Differential type : 500K
Transistor type : 200K
*Position Command Resolution : 4 x Installed encoder resolution
*In-Position Setting Range : 0 ~ ± 10000 pulse
*Electronic Gear Ratio : A/B times A=32767 B=32767 1/50<A/B<50
*Torque Limit : 0 ~ 10V / 0 ~ Max. Torque
Torque Control
*Torque Command : 0 ~ 10V / 3x Rated Torque
*Speed Limit : Internal Torque Speed limited or limit from external Analog Speed Limit Command
Environment
*Storage Temperature : -20°C ~ 65°C
*Operation Temperature : 0°C ~ 40°C
*Humidity : Humidity below 90%, RH (non-condensing)
*Altitude : Sea Level below 1000M
*Vibration : Below < 5m/s
