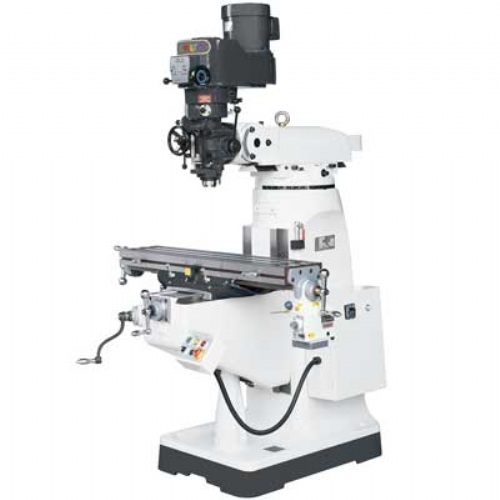

TURRET MILL
Modeeel: BMT 1500S/ 1500V
Industry: Machine Tools / Milling Machines / Turret Vertical Milling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
FEATURES :
* Quill dia. 86mm
* Turcite-B coated on X & Y saddle
* X, Y slide ways hardened & ground
* Hardened table
* One shot lubrication
* 2HP step speed head(1500S)
* 3HP step speed head(1500V)
* Meehanite casting
Specifications
*TABLE SIZE: 230 x 1067 mm
*LONGITUDINAL TRAVEL, MANUAL: 720 mm
*CROSS TRAVEL, MANUAL: 300 mm
*VERTICAL TRAVEL, MANUAL: 400 mm
*TABLE T-SLOT(W x No. X pitch): 16 x 3 x 63 mm
*SPINDLE MOTOR: 2 HP(1500S) 3 HP(1500V)
*SPINDLE SPEED (60HZ): 8 steps, 80~2720 RPM(1500S) Variable speeds, 60~4200 RPM(1500V)
*SPINDLE TAPER: R8 / ISO 30
*SPINDLE NOSE TO TABLE TOP: 57~463 mm
*SPINDLE CENTER TO COLUMN SURFACE: 213~533 mm
*QUILL TRAVEL: 127 mm
*AUTO. QUILL FEEDS(PER REVOLUTION): 0.04 / 0.08 / 0.15 mm
*HEAD SWIVEL: (R & L)45° (F & B) 45°
*RAM TRAVEL: 320 mm
*NET WEIGHT: 900 kgs
