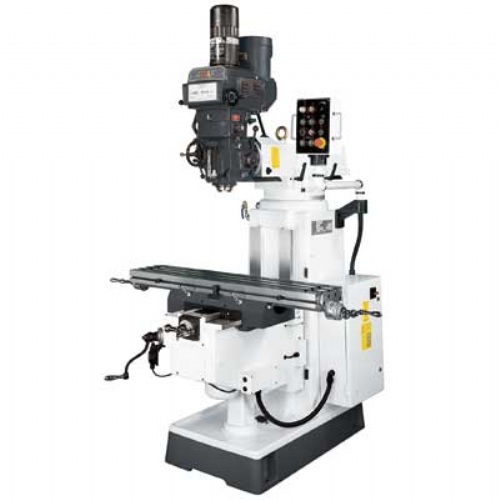

TURRET MILL
Modeeel: BMT 2500S/ 2500V
Industry: Machine Tools / Milling Machines / Turret Vertical Milling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
FEATURES :
*Quill dia. 105mm
*Rapid up & down motor
*Turcite-B coated on X & Y saddle
*Coolant system & chip tray
*Y & Z axis square ways
*Electrical box & control panel
*X, Y, Z slides hardened & ground
*3HP step speed head (2500S)
*Hardened table
*5HP Variable speed head (2500V)
*Auto. lubrication
*Meehanite casting
Specifications
*TABLE SIZE: 254 x 1270 mm
*LONGITUDINAL TRAVEL, MANUAL: 770 mm
*CROSS TRAVEL, MANUAL: 400 mm
*VERTICAL TRAVEL, MANUAL: 450 mm
*TABLE T-SLOT(W x No. X pitch): 16 x 3 x 63 mm
*SPINDLE MOTOR: 3HP(2500S) 5HP(2500V)
*SPINDLE SPEED (60HZ): 10 steps,60~3600RPM(2500S) Variable speeds,80~3800RPM(2500V)
*SPINDLE TAPER: ISO 40
*SPINDLE NOSE TO TABLE TOP: 55~505 mm
*SPINDLE CENTER TO COLUMN SURFACE: 130~550 mm
*QUILL TRAVEL: 127 mm
*AUTO. QUILL FEEDS (PER REVOLUTION): 0.04 / 0.08 / 0.15 mm
*HEAD SWIVEL: (R & L)45°
*RAM TRAVEL: 420 mm
*NET WEIGHT: 1500 kgs
