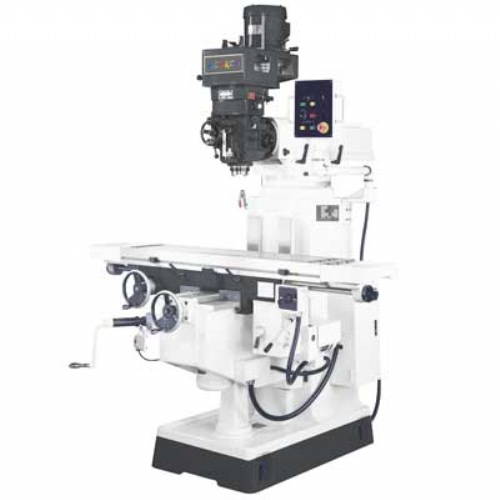

TURRET MILL
Modeeel: BMT 3500S/ 3500V
Industry: Machine Tools / Milling Machines / Turret Vertical Milling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
FEATURES :
*Quill dia. 105mm
*Rapid up & down motor
*Turcite-B coated on X & Y saddle
*Coolant system & chip tray
*Y & Z axis square ways
*Electrical box & control panel
*X, Y, Z slides hardened & ground
*5HP step speed head (3500S)
*Hardened table
*5HP Variable speed head (3500V)
*Auto. lubrication
*Meehanite casting
Specifications
TABLE
*TABLE SIZE: 300 x 1270 mm
*T-SLOT (W x NO. x Pitch): 16 x 3 x 80 mm
TRAVEL
*X, Y & Z-MANUAL: 930 x 400 x 450 mm
*X, Y & Z-AUTO.: 920 x 380 x 450 mm
FEED
*LONGITUDINAL AUTO. FEEDS: 22~384 mm/min (6 steps)
*LONGITUDINAL RAPID TRAVERSE: 1250 mm/min
*VERTICAL RAPID TRAVERSE: 430 mm
SPINDLE
*SPINDLE NOSE: ISO 40
*SPINDLE SPEEDS: 16 steps,75~3600RPM(3500S) Variable speeds,90~3800RPM(3500V)
*SWIVELLING ANGLE: (R & L) 45°
*QUILL TRAVEL: 127 mm
*QUILL FEEDS: 0.04 / 0.08 / 0.15 Rev.
*SPINDLE NOSE TO TABLE: 35~485 mm
*SPINDLE CENTER TO COLUMN: 130~550 mm
*CROSS TRAVEL OF RAM: 420 mm
*HORIZONTAL ROTATION OF RAM: 360°
MOTOR
*VERTICAL SPINDLE: 5HP-4P
*LONGITUDINAL FEED: 3/4 HP-4P
* VERTICAL RAPID: 1/2 HP-4P
*COOLANT PUMP: 1/8 HP-2P
SIZE
*MACHINE (L x W x H): 1740 x 1540 x 2330 mm
*NET WEIGHT: 1650 kgs(3500S) 1700 kgs(3500V)
