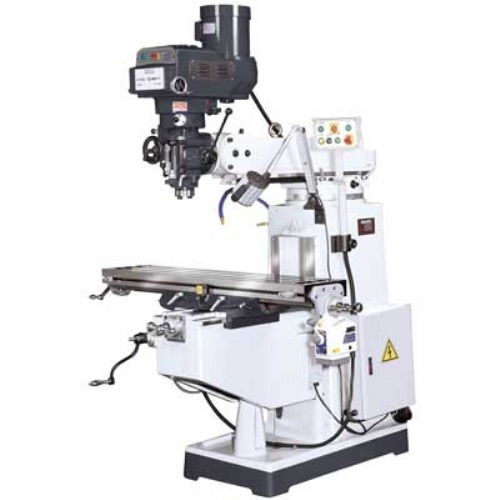

TURRET MILL
Modeeel: BMT 3VM
Industry: Machine Tools / Milling Machines / Turret Vertical Milling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
FEATURES :
*Quill dia. 86 mm
*Hardened table
*Y & Z slide ways hardened & ground
*Turcite-B coated on X & Y saddle
*One shot lubrication
*250 x 1270 mm table
Specifications
TABLE
*TABLE SIZE: 250 x 1270 mm (250 x 1370mm-opt.)
*T-SLOT: 3
TRAVEL
*X AXIS: 800 mm ( 900 mm-opt.)
*Y AXIS: 390 mm
*Z AXIS: 406 mm
*QUILL: 127 mm
*RAM: 350 mm (500 mm-opt.)
SPINDLE
TAPER: ISO 30 or R8 (ISO 40-opt.)
MOTOR: 2HP(3M) 3HP(3VM)
QUILL FEEDS: 0.04, 0.06, 0.15 mm/ rev.
SPINDLE SPEEDS: 16 speeds, 80~5400RPM(3M) Variable speeds, 70~4200 RPM(3VM)
MACHINE DIMENSION
OVERALL HEIGHT: 2130 mm
DEPTH: 2000 mm
WIDTH: 1640 mm
*HEAD: 45° tilt forward & backward 90° right & left
*SPINDLE CENTER TO COLUMN: Min.: 150 mm , Max.: 500 mm(650-opt.)
SPINDLE NOSE TO TABLE: Min.: 60 mm , Max.: 466 mm
N.W. : 1000 kgs
