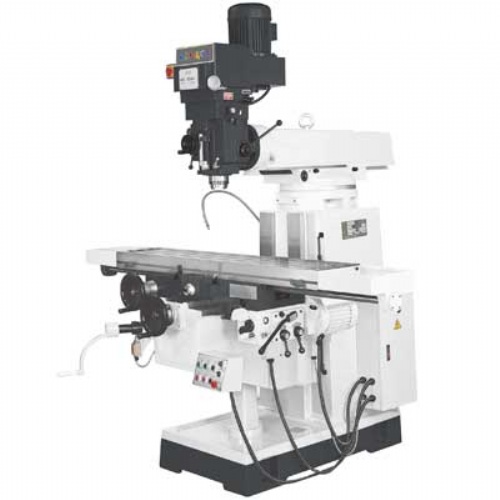

TURRET MILL
Modeeel: BMT 4000V
Industry: Machine Tools / Milling Machines / Turret Vertical Milling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
FEATURES:
*ISO 40 spindle
*Longitudinal gear box for auto. & rapid feeds
*Quill dia. 105 mm
*Auto. lubrication
*Quill travel 150 mm
*Rapid up & down motor
*Y & Z axis square ways
*Electrical box & control panel
*Turcite-B coated on X & Y saddle
*Coolant system
*X, Y & Z slide ways hardened & ground
*5HP Variable speed head
*Hardened table
*Meehanite casting
Specifications
*TABLE SIZE: 300 x 1500 mm
*LONGITUDINAL TRAVEL- MANUAL: 1200 mm
*CROSS TRAVEL-MANUAL: 380 mm
*VERTICAL TRAVEL, MANUAL: 500 mm
*TABLE T-SLOT (W x NO. x PITCH): 16 x 3 x 70 mm
*SPINDLE MOTOR: 5 HP
*SPINDLE SPEED (60 HZ): Variable speeds, 60~3600 RPM
*SPINDLE TAPER: ISO 40
*SPINDLE NOSE TO TABLE TOP: 0~535 mm
*SPINDLE CENTER TO COLUMN SURFACE: 175~700 mm
*QUILL TRAVEL: 150 mm
*AUTO. QUILL FEEDS: 0.04 / 0.08 / 0.16 mm
*HEAD SWIVEL: (R & L) 45°
*RAM TRAVEL: 500 mm
*NET WEIGHT: 2250 kgs
