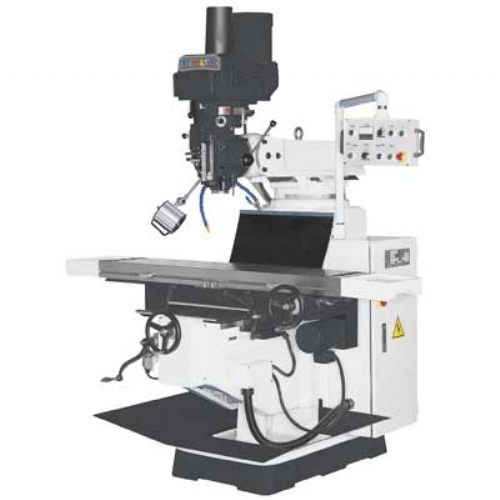

TURRET MILL
Modeeel: BMT 4500V
Industry: Machine Tools / Milling Machines / Turret Vertical Milling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
FEATURES :
*ISO 40 spindle
*Z axis rapid up & down driven by 1/2 HP motor
*Quill dia. 105 mm
*Auto. lubrication
*Y & Z axis square ways
*Electrical box installed with overarm control panel
*Turcite-B coated on X & Y saddle
*X & Y axis auto. & rapid feeds driven by 1/2 HP motor and inverter
*Halogen light
*5 HP inverter drive spindle, variable speeds
*Hardened table and all slide ways
*Meehanite casting
Specifications
*TABLE SIZE: 300 x 1500 mm
*LONGITUDINAL TRAVEL- MANUAL: 1000 mm
*CROSS TRAVEL-MANUAL: 400 mm
*VERTICAL TRAVEL, MANUAL: 450 mm
*TABLE T-SLOT (W x NO. x PITCH): 16 x 3 x 70 mm
*SPINDLE MOTOR: 5HP
*SPINDLE SPEED (60 HZ): Variable speeds, 70~4200 RPM
*SPINDLE TAPER: ISO 40
*SPINDLE NOSE TO TABLE TOP: 85~470 mm
*SPINDLE CENTER TO COLUMN SURFACE: 265~750 mm
*QUILL TRAVEL: 125 mm
*AUTO. QUILL FEEDS: 0.04 / 0.08 / 0.16 mm
*HEAD SWIVEL: (R & L) 45° (F & B) 35°
*RAM TRAVEL: 500 mm
*NET WEIGHT: 1700 kgs
