Home
Products
SURFACE GRINDER

Enlarge

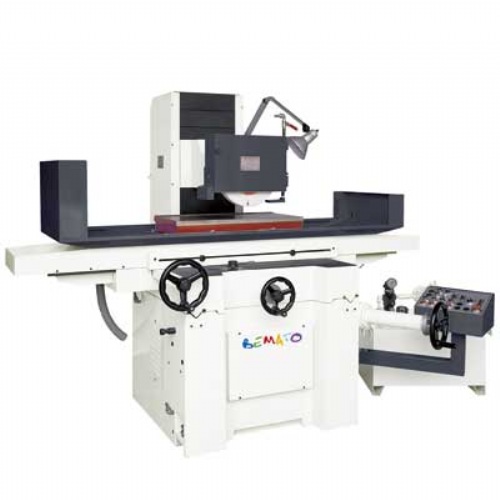

SURFACE GRINDER

Modeeel: BMT 4080AH

Industry: Machine Tools / Grinding Machines / Surface Grinding Machines

Supplier; BENIGN ENTERPRISE CO., LTD.

Booth No: N/A

Characteristics

FEATURES :
*Hydraulic longitudinal feed. Direction changed by sensor & solenoid valve.
*Automatic cross feed. Direction changed by stopping dog and limit switch.
*Manual vertical feed.
*Continuous lubrication with recycled filterized lubricants.
*Longitudinal: One flat & one Vee way
*Cross: 2 Vee ways

Specifications

*GRINDING SURFACE OF TABLE: 400 x 800mm
*TABLE TRAVEL (Y x X): 450 x 860mm
*SPINDLE CENTER TO TABLE: 550mm , Opt.-650mm
*LONGITUDINAL FEED: 5~25 M/min
*RAPID CROSS FEED: 60HZ-1100 mm/min, 50HZ-900 mm/min
*CROSS FEED INCREMENT: 5mm/Rev. 0.02mm/Graduation
*AUTOMATIC CROSS FEEDS: 0.1~20mm
*VERTICAL FEED INCREMENT: 2 mm/Rev. 0.01 mm/Graduation
*RAPID VERTICAL FEED(OPTION): 60HZ-550mm/min, 50HZ-450mm/minh
*WHEEL SPEEDS: 60HZ-1750RPM, 50HZ-1450RPM
*WHEEL DIMENSION: 406 x 50 x 127mm
*SPINDLE MOTOR: 5HP, Opt.-7.5HP
*HYDRAULIC PUMP MOTOR: 2HP
*N.W. / G.W.: 3250 / 3500kgs
*PACKING DIMENSION (L x W x H): 2760 X 2280 X 2150mm
