SURFACE GRINDER

Enlarge

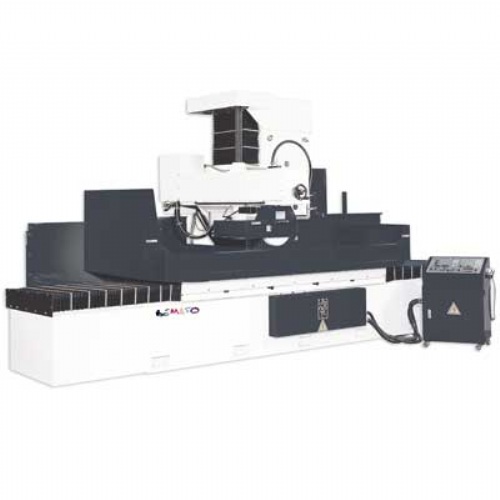

SURFACE GRINDER

Modeeel: BMT 100150AHR

Industry: Machine Tools / Grinding Machines / Surface Grinding Machines

Supplier; BENIGN ENTERPRISE CO., LTD.

Booth No: N/A

Characteristics

FEATURES :
*Hydraulic longitudinal feed. Direction changed by sensor & solenoid valve.
*Automatic cross feed. Direction changed by stopping dog and limit switch.
*Vertical feed driven by AC motor.
*Longitudinal / Cross: 2 Vee ways.

Specifications

*GRINDING SURFACE OF TABLE: 1000 x 1500mm
*TABLE TRAVEL (Y x X): 1000x 1500mm
*SPINDLE CENTER TO TABLE: 800mm, Opt.-1000mm
*LONGITUDINAL FEED: 3~25 M/min, 6 steps
*RAPID CROSS FEED: 60HZ-1050 mm/min, 50HZ-900 mm/min
*CROSS FEED INCREMENT: 5 mm/Rev. 0.02 mm/Graduation
*VERTICAL FEED BY MPG:
(x1) 0.1mm, (x5) 0.5mm , (x10) 1mm / Rev. (x1) 0.001mm, (x5) 0.005mm , (x10) 0.01mm/Graduation
*RAPID VERTICAL FEED: 400 mm/minh
*WHEEL SPEEDS: 60HZ-1740RPM, 50HZ-1450RPM
*WHEEL DIMENSION: 406 x 50 x 127mm, Opt.-406 x 75 x 127mm
*SPINDLE MOTOR: 10HP, Opt.-15HP
*HYDRAULIC PUMP MOTOR: 7.5HP
*N.W.: 13800kgs
*G.W.: 14800kgs
*MACHINE DIMENSION(L x W x H): 516 x 266 x 256 cm
*PACKING DIMENSION(L x W x H):
C / NO.1 546 x 276 x 297 cm
C / NO.2 165 x 165 x 206 cm
