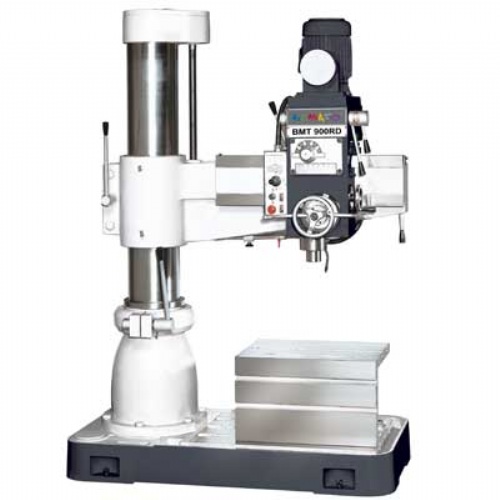

RADIAL DRILL
Modeeel: BMT 750RD/ 900RD
Industry: Machine Tools / Drilling Machines / Radial Drilling Machines
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
STANDARD ACCESSORIES :
*Working table
*Coolant pump
*Work lamp
*Tool box & tools
Specifications
DRILLING CAPACITY
*STEEL: Ø38mm
*CAST IRON: Ø50mm
TAPPNIG CAPACITY
*STEEL: Ø19mm
*CAST IRON: Ø25mm
BORING CPACITY
*STEEL: Ø75mm
*CAST IRON: Ø105mm
*SPINDLE STROKE: 200 mm
*SIZE OF MORSE TAPER: MT4
*SPINDLE SPEED: 6 steps, 88~1500 RPM (60HZ), 73~1250 RPM (50HZ)
*SPINDLE FEEDS: 0.05, 0.09, 0.15 mm
*COLUMN DIAMETER: 210 mm
*COLUMN SURFACE TO SPINDLE CENTER(MAX.): 775mm(750RD) 920 mm(900RD)
*COLUMN SURFACE TO SPINDLE CENTER(MIN.): 290mm
*HORIZONTAL TRAVEL OF HEADSTOCK: 485mm(750RD) 630mm(900RD)
*BASE TO SPINDLE NOSE (MAX.): 1110 mm
*BASE TO SPINDLE NOSE (MIN.): 282 mm
*OVERALL HEIGHT OF COLUMN: 1950 mm
*MACHINE HEIGHT FROM FLOOR: 2175 mm
*DIMENSIONS OF BASE (L x M x k):
1280 x 640 x 150mm(750RD)
1435 x 640 x 150mm(900RD)
*WORKING TABLE (R x S x T): 550 x 405 x 315 mm
*SPINDLE MOTOR: 2HP, 3ph, 4P
*ARM ELEVATION MOTOR: 1 HP
*COOLANT PUMP: 1/8 HP
*N.W.: 1100kgs(750RD) 1170kgs(900RD)
*G.W.: 1200kgs(750RD) 1270kgs(900RD)
*MEASUREMENT(L x W x H): 1430 x 820 x 2060mm(750RD) 1600 x 800 x 2100mm(900RD)
