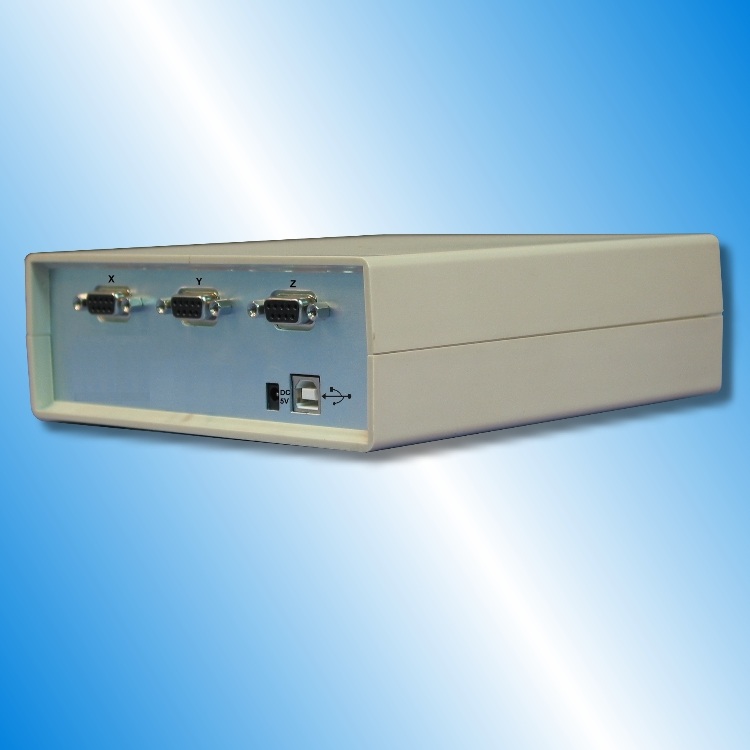

3-axis USB Quadrature Encoder Counter Interface (No External Trigger Latch Mode)

Enlarge

3-axis USB Quadrature Encoder Counter Interface (No External Trigger Latch Mode)

Modeeel: LSI-5123L

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*1 MHz max. Quadrature input rate
*Three 32-bit counters
*Quadrature, pulse / direction and up / down counting
*Programmable multiply rate at X1, X2, X4
*Multiple counter reset (homing) modes

Specifications

*Counter Length : 32-bit
*Input Channel : 3 channels X, Y, Z, totally 3 compatible device units can be hooked
*Input Signal Type : TTL input
*Input Pulse Multiply Rate : X1, X2, X4 programmable (quadrature signal only)
*Maximum Quadrature Input Frequency : 1MHz @X1, 1MHz @X2, 1MHz @X4
*Input Mode : (QUADRATURE), (CLOCK / DIRECTION), (UP CLOCK / DOWN CLOCK)
*Homing (Reset) Counter Method : one software trigger mode and four H / W trigger mode (by Z / index signal)
*Operation Temperature : 0°C ~ 70°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimension : 170(D) * 160(W) * 55(H) mm, 6.7(D) * 6.3(W) * 2.2(H) in
