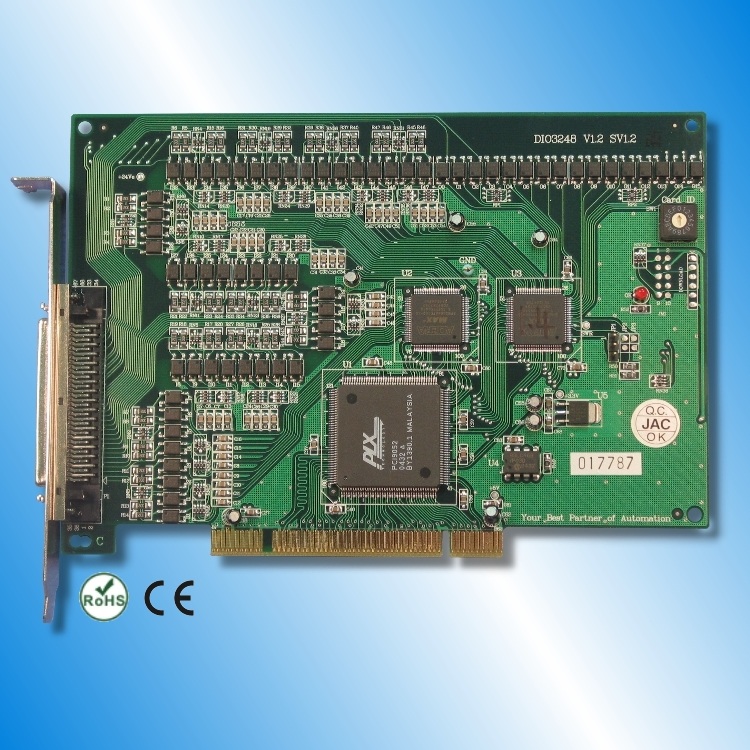

64-Channel Digital I/O Card (Opto Isolated 48 DI, 16 DO)

Enlarge

64-Channel Digital I/O Card (Opto Isolated 48 DI, 16 DO)

Modeeel: DIO-3248

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*48 isolated digital input and 16 isolated digital output
*High voltage isolation on all isolated channels (2500V)
*DIN rail wiring board
*Various output selection : Relay, PMOS and NMOS
*No output transition during start up
*External triggered interrupt (IN0, IN1)
*Software key function

Specifications

Digital Input
*Input : 48 isolated digital input
*Rated input voltage : 24V
*Input logic low voltage (V IL) : 2.8Vdc(max), 4.5ma(min)
*Input logic high voltage (V IH) : 8Vdc(min),3ma(max)
*Switching speed : 2.2KHz(max) with on board debounce circuit
Digital Output
*Output : 16 isolated digital output
*Output Rating :
1A @ 120Vdc (NMOS)
1A @ 24Vdc (PMOS)
3A @ 250Vac, 30Vdc (Relay)
*Switching Speed : 20KHz (max) (MOS out only)
General
*Card ID : 4-bit
*Insulation Resistance : 100M Ohm (min) at 1000Vdc
*Isolation Voltage : 2500Vac 1Min
*Connector : One 68-pin SCSI II female connector
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 175(W) * 122(H) mm, 6.9(W) * 4.8(H) in
