64-Channel Digital Input Card (Opto Isolated 64 DI)

Enlarge

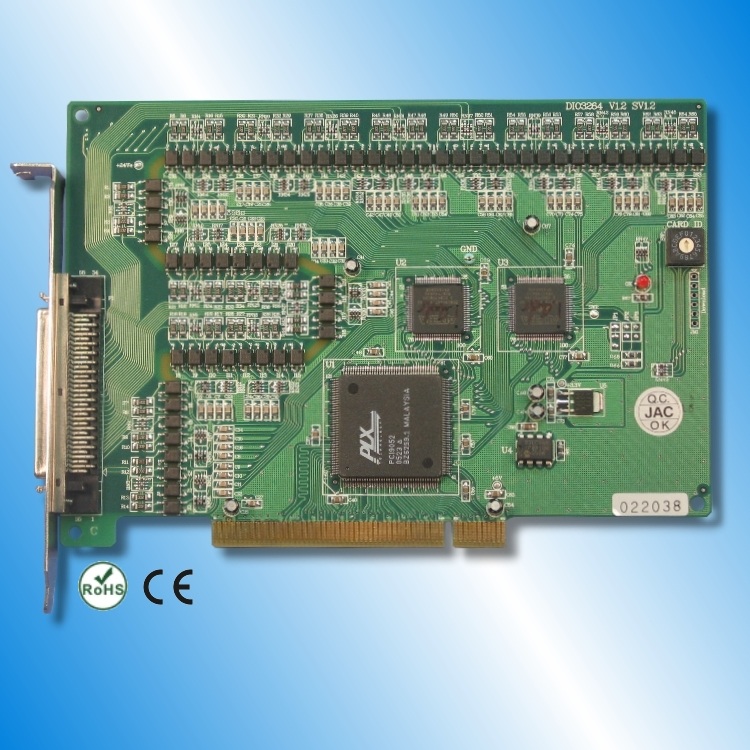

64-Channel Digital Input Card (Opto Isolated 64 DI)

Modeeel: DIO-3264

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*64 isolated digital input
*High voltage isolation on all isolated channel (2500Vac)
*DIN rail wiring board
*External triggered interrupt (on IN0, IN1)
*Software key function

Specifications

Digital Input
*Input : 64 isolated digital input
*Rated input voltage : 24V
*Input logic low voltage (V IL) : 2.8Vdc(max), 4.5ma(min)
*Input logic high voltage (V IH) : 8Vdc(min),3ma(max)
*Switching speed : 2.2KHz(max) with on board debounce circuit
General
*Card ID : 4-bit
*Insulation Resistance : 100M Ohm (min) at 1000Vdc
*Isolation Voltage : 2500Vac 1Min
*Connector : One 68-pin SCSI II female connector
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 175(W) * 122(H) mm, 6.9(W) * 4.8(H) in
