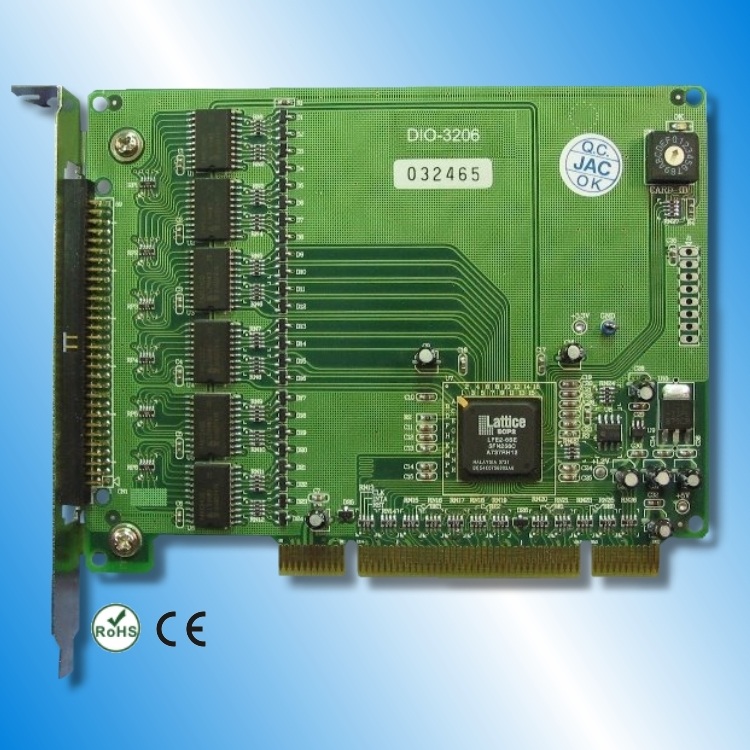

48-Channel TTL Digital I/O Card

Enlarge

48-Channel TTL Digital I/O Card

Modeeel: DIO-3206

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*48(6 port) TTL digital I/O channels
*Software debounce : No debounce, 100Hz, 200Hz, 1KHz
*No output transition during start-up
*Output status readback
*External triggered interrupt (on IN00 ~ IN07)
*32-bit timer with cross zero interrupt

Specifications

Digital Input
*Input : 48(max) digital input
*Input logic low voltage (V IL) : 1.35Vdc(max)
*Input logic high voltage (V IH) : 3.15Vdc (min)
Digital Output
*Output : 48(max) digital output
*Output rating : 12ma(peak) per channel
Timer
*Channel : 1
*Timer length : 32-bit @1us time base
General
*Card ID : 4-bit
*Connector : 60-pin male flat cable connector
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 130(W) * 102(H) mm, 5.2(W) * 4.1(H) in
