64-Channel Digital Output Card (Opto Isolated 64 DO)

Enlarge

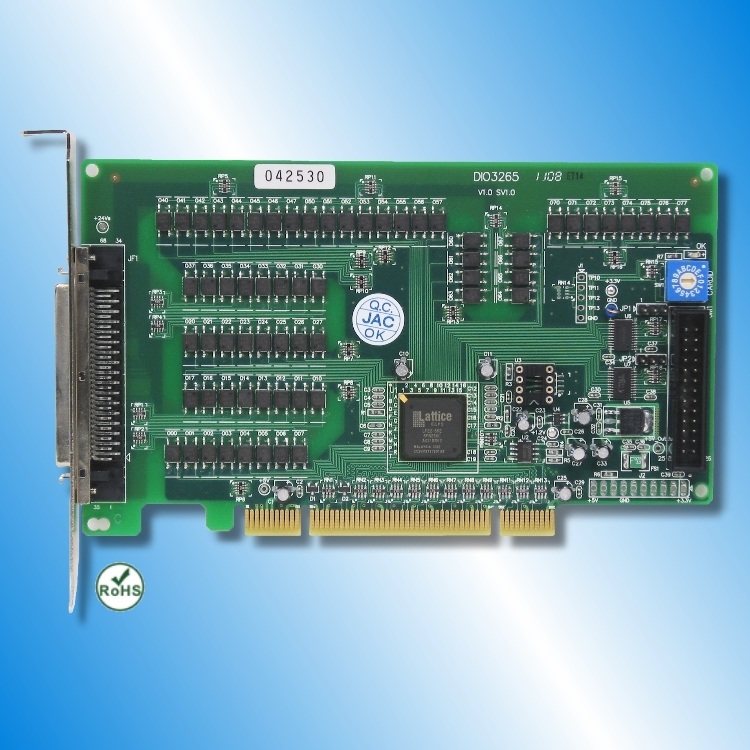

64-Channel Digital Output Card (Opto Isolated 64 DO)

Modeeel: DIO-3265

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*64 isolated digital output
*High voltage isolation on all isolated channels (2500V)
*DIN rail Relay wiring board
*No output transition during start up
*2 byte configurable TTL I/O
*TTL output can be high or low at power up
*TTL input debounce : No debounce, 100Hz, 200Hz, 1KHz
*32-bit timer with zero-crossing interrupt
*Software key function

Specifications

Digital Output
*Output : 64 isolated digital output
*Output rating : 3A @250Vac, 30Vdc (Relay wiring board)
TTL IO
*Input : 16(max) TTL
*Output : 16(max) TTL
*IO configuration : software
Timer
*Timer length : 32-bit @1us time base
General
*Card ID : 4-bit
*Insulation Resistance : 100M Ohm(min) at 1000Vdc
*Isolation Voltage : 2500Vac 1Min
*Connector : One 68-pin SCSI-II female connector
*Operation Temperature : 0 OC ~ +70 OC
*Storage Temperature : -20 OC ~ +80 OC
*Operation Humidity : 5~95% RH, non-condensing
*Dimensions : 160(W)*95(H)mm, 6.3(W)*3.8(H)in
