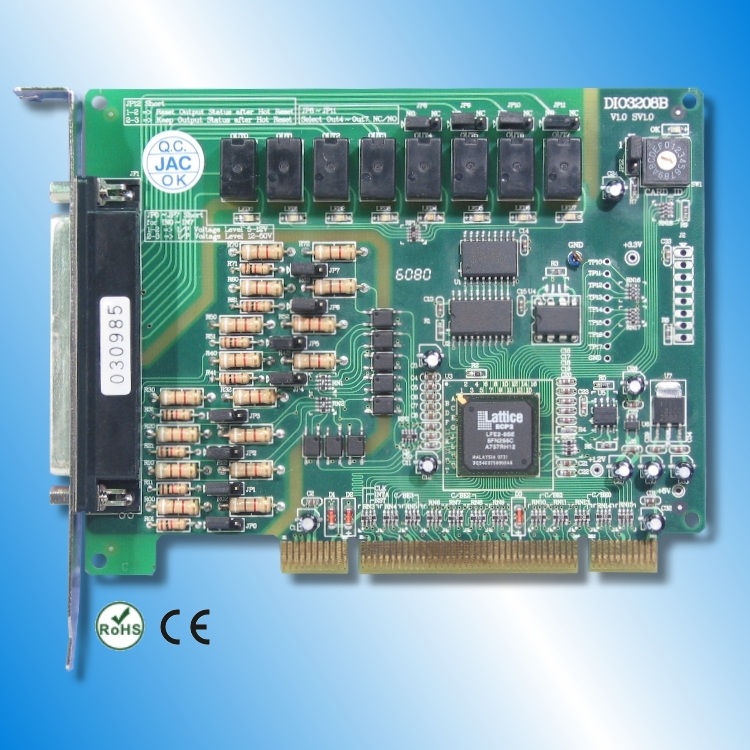

16-Channel Digital I/O Card (Opto Isolated 8 DI, 8 Relay DO)

Enlarge

16-Channel Digital I/O Card (Opto Isolated 8 DI, 8 Relay DO)

Modeeel: DIO-3208B

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*8 isolated digital input and 8 isolated digital output
*High voltage isolation on all isolated channels (2500V)
*Software debounce : No debounce, 100Hz, 200Hz, 1KHz
*External triggered interrupt (IN0~IN1)
*DIN rail wiring board
*No output transition during start up
*Wide bipolar input range : 5Vdc~12Vdc or 12Vdc~50Vdc (jumper selectable)
*4 c-contact and 4 a/b contact (jumper selectable) relay output
*Keep output state after hot reset (jumper selectable)
*Multi-function timer/counterg
*Software key function

Specifications

Digital Input
*Input : 8 isolated digital input
*Rated input voltage : 5Vdc~12Vdc or 12Vdc~50Vdc (jumper selectable)
*Input logic low voltage (V IL) : 2.8Vdc(max) @5Vdc~12Vdc
                                                       10Vdc(max) @12Vdc~50Vdc
*Input logic high voltage (V IH) : 8Vdc(min), 3ma(max)
Switching speed : 2.2KHz(max) with on board debounce circuit
Digital Output
*Output : 8 Relay
*Output rating : 1A @120Vac, 24Vdc
*Switching speed : 300 ops./min (no load)
                                   30 ops./min (rated load)
*Expected Electric Life : 5 million ops (no load)
Timer / Counter
*Channels : 1
*Data Length : 32-bit
*Specific Input : trigger in / counter in via digital I/O IN0
*Specific Output : trigger out / counter out via digital I/O OUT0
*Time Base : timer @1MHz, Multi-Functions counter @33MHz
*Multi-Function : Programmable one-short
                              Square wave generator
                              Event counter
                              PWM generator
General
*Card ID : 4-bit
*Insulation Resistance : 100M Ohm (min) at 1000Vdc
*Isolation Voltage : 2500Vac 1Min
*Connector : One 37-pin female connector
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 130(W) * 102(H) mm, 5.2(W) * 4.1(H) in
