32-Channel Digital I/O Card (Opto Isolated 16 DI, 16 DO)

Enlarge

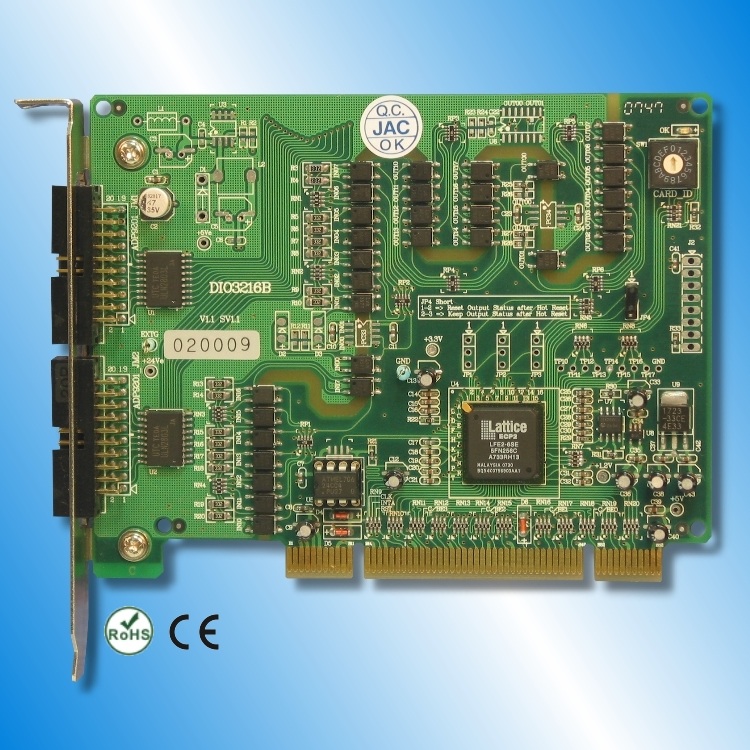

32-Channel Digital I/O Card (Opto Isolated 16 DI, 16 DO)

Modeeel: DIO-3216B

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*16 isolated DI and 16 isolated DO channels
*High voltage isolation on all isolated channel (2500Vac)
*Software debounce : No debounce, 100Hz, 200Hz, 1KHz
*No output transition during start-up
*Output status readback
*External triggered interrupt (on IN00 ~ IN07)
*Keep output state after hot reset (jumper selectable)
*Software key function

Specifications

Digital Input
*Input : 16 photo-isolated
*Software Debounce : No debounce, 100Hz, 200Hz, 1KHz
*ON State : 2.8Vdc (max) 4.5mA (min)
*OFF State : 8Vdc (min) 3mA (max)
*Switching Speed : 10KHz max. (limit by photo coupler speed and debounce filter)
*Interrupt at IN00 ~ IN07
Digital Output
*Output : 16 photo-isolated
*Output Range : Open collector 0 ~ 45Vdc (on card)
*Output Rating :
3A @ 250Vac, 30Vdc (Relay)
1A @ 24Vdc (PMOS)
2A @ 240Vac (SSR)
*Sink Current : 500mA (peak) per channel (on card)
*Switching Speed : 20KHz (max) (MOS out only)
General
*Card ID : 4-bit
*Insulation Resistance : 100M Ohm (min) at 1000Vdc
*Isolation Voltage : 2500Vac 1Min
*Connector : Two 20-pin male flat-cable connectors
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 130(W) * 102(H) mm, 5.2(W) * 4.1(H) in
