32-Channel Digital I/O Card (Opto Isolated 16 DI, 16 DO, Multifunction Timer / Counter)

Enlarge

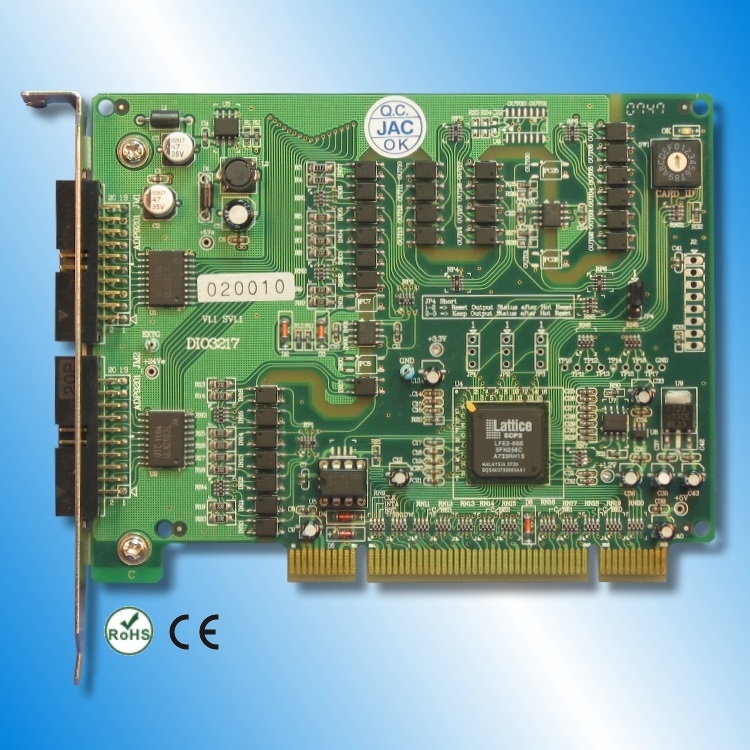

32-Channel Digital I/O Card (Opto Isolated 16 DI, 16 DO, Multifunction Timer / Counter)

Modeeel: DIO-3217

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*16 isolated DI and 16 isolated DO channels
*High voltage isolation on all isolated channel (2500Vac)
*Software debounce : No debounce, 100Hz, 200Hz, 1KHz
*No output transition during start-up
*Output status readback
*External triggered interrupt (on IN00 ~ IN07)
*Keep output state after hot reset (jumper selectable)
*High Speed Timer Counter Function :
Counter and PWM timer
Gate control
Counter input
Programmable trigger output
*Quadrature counter function
*Software key function

Specifications

Digital Input
*Input :14 photo-isolated
   2 high speed magnetic coupler (TTL level)
IN00 : Gate
IN01 : Ti
*Software Debounce : No debounce, 100Hz, 200Hz, 1KHz
*ON State : 2.8Vdc (max) 4.5mA (min)
*OFF State : 8Vdc (min) 3mA (max)
*Switching Speed : 10KHz max. (limit by photo coupler speed and debounce filter)
*Interrupt at IN00 ~ IN07
Output Section
*Output : 14 photo-coupler isolated,
                 2 high speed magnetic coupler (open collector)
                 OUT00 : Tout
                 OUT01 : General
*Output Range : Open collector 0Vdc ~ 45Vdc (on card)
*Output Rating : 3A @250Vac, 30Vdc (Relay)
                              1A @ 24Vdc (P MOS)
                              2A @ 240Vac (SSR)
*Sink Current : 500mA(peak) per channel (on card)
*Switching Speed : 20KHz(max)(MOS out only)
Timer/Counter/PWM Section
*Timer time base : 1us
*Timer/counter length : 32-bit
*Counter frequency (max) : 8MHz
*PWM time base : 33MHz
*PWM frequency : 16-bit
*PWM duty : 16-bit
Quadrature Counter
*Input multiple rate : x1, x2, x4 programmable (quadrature signal only)
*Maximum quadrature input frequency : 8MHz @x1, 5MHz @x2, 3MHz @x4
*Input mode : A,B phase (quadrature mode)
*Counter length : 32-bit
General
*Card ID : 4-bit
*Insulation Resistance : 100M Ohm (min) at 1000Vdc
*Isolation Voltage : 2500Vac 1Min
*Connector : Two 20-pin male flat-cable connectors
*Operation Temperature : 0 OC ~ +70 OC
*Storage Temperature : -20 OC ~ +80 OC
*Operation Humidity : 5~95% RH, non-condensing
*Dimensions : 130(W)*102(H)mm, 5.2(W)*4.1(H)in
