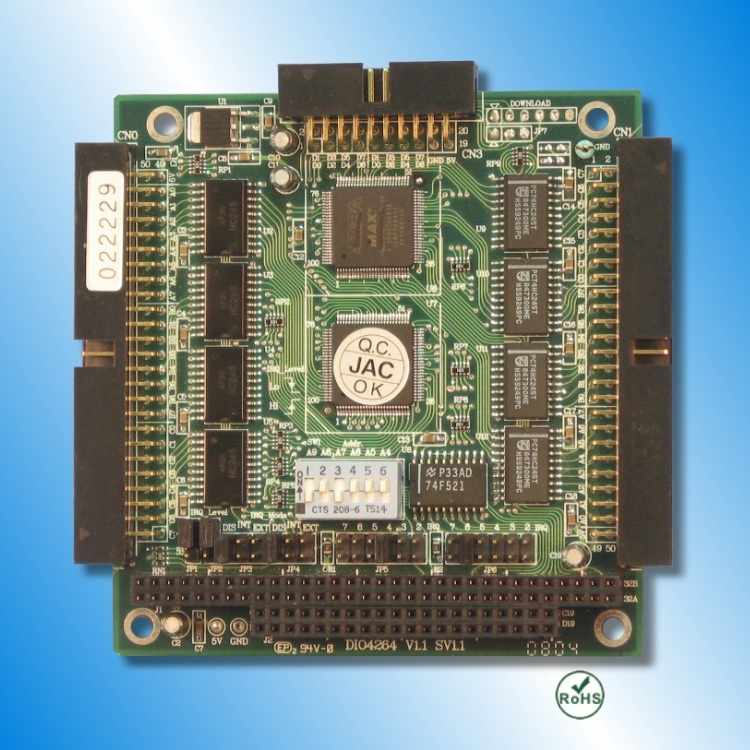

64-Channel Digital I/O PC-104 Module (64 TTL DIO)

Enlarge

64-Channel Digital I/O PC-104 Module (64 TTL DIO)

Modeeel: DIO-4264

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*48 digital I/O lines emulate two 82C55A PPIs
*16 extra nibble programmable digital I/O
*Dual 50-pin connectors for OPTO22 compatible module racks
*FPGA based design
*EXT/INT irq trigger, programmable irq number
*Circuit diagram provided for potential customer to field change

Specifications

Power Requirement
*Power Supply Range : 5Vdc
*Power Consumption : 50mA @ 5V
Input Stage (@ Vcc=4.5V)
*Logic High Voltage : 3.15V (min)
*Logic Low Voltage : 1.35 (max)
*Input High Current : 1uA (max)
*Input Low Current : -1uA (max)
Output Stage (@ Vcc=4.5V)
*Logic High Voltage : 3.84V (min) @ 6mA load
*Logic Low Voltage : 0.33V (min) @ 6mA load
*Output High Current : -35mA (max)
*Output Low Current : 35mA (max)
Interrupt
*Mode : INTernal/EXTernal
*Enable / Disable : PC04/PC14
*Trigger In : PC00/PC10
*Irq No. : irq2-irq7,jumper selectable
General
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 90(W) * 96(H) mm, 3.6(W) * 3.8(H) in
