12/16-bit Analog I/O and Digital I/O PCI-104 Module

Enlarge

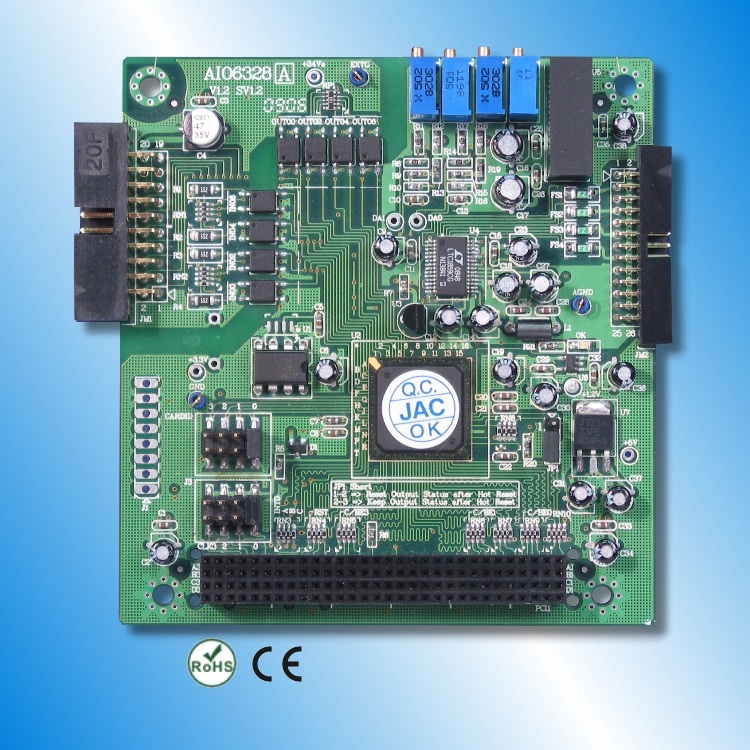

12/16-bit Analog I/O and Digital I/O PCI-104 Module

Modeeel: AIO-6328/A

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*Software programmable Single end 8 channel or differential 4 channel AD input
*AD resolution : 12-bit (AIO-6328), 16-bit (AIO-6328A)
*Software selectable input range : -10V~ +10V, -5V~ +5V, 0~ +10V, 0~ +5V
*2 channel DA output for -10~ +10V
*DA resolution : 13-bit (AIO-6328), 17-bit (AIO-6328A)
*8 bit isolated digital input
*8 bit isolated digital output
*No output transition during start up
*Software debounce : No debounce, 100Hz, 200Hz, 1KHz
*Keep output state after hot reset (jumper selectable)
*External triggered interrupt (IN00~IN07)
*32-bit timer with zero-crossing interrupt
*Software key function

Specifications

Analog Input
*Input Channels : single end 8 channel(max) or differential 4 channel(max)
*Resolution : 12-bit (AIO-6328), 16-bit (AIO-6328A)
*Input Range : -10V~ +10V, -5V~ +5V, 0~ +10V, 0~ +5V
*Input Impedance : 21K ohm (unipolar), 16K ohm (bipolar)
*Conversion Speed : 10us per channel
*Integral linearity Error : -1~ +1 LSB
*Zero Error : Bipolar -10~ +10 LSB(max),
                          Unipolar -5~ +5 LSB(max)
*Gain error : -10~ +10 LSB(max)
Analog Output
*Output Channel : 2
*Resolution : 13-bit (AIO-6328), 17-bit (AIO-6328A)
*Range : -10~ +10V
Digital I/O
*IO channel : isolated 8 DI, 8 DO
*Output range : open collector 0~45Vdc (without wiring board)
*Sink current : 500mA(peak) per output bit (without wiring board)
*Switch speed : 20KHz (without wiring board or MOS type output)
*Output rating : using wiring board ADP-9201DIN series
                               3A @250Vac, 30Vdc (Relay)
                               1A @ 24Vdc (PMOS)
                               2A @ 240Vac (SSR)
Timer/Counter
*Channels : 1
*Data Length : 32-bit
*Time Base : timer @1MHz
*Interrupt : time up interrupt
General
*PCI data width : 32-bit
*Card ID : 0~3
*Insulation resistance : 100M Ohm (min) at 1000Vdc
*Isolation voltage : 2500Vac 1Min (digital block only)
*Connector : One 20-pin male flat-cable connector
                          One slim type 26-pin male flat-cable connector
*Operation Temperature : 0 OC ~ +70 OC
*Storage Temperature : -20 OC ~ +80 OC
*Operation Humidity : 5~95% RH, non-condensing
*Dimension : 90(W)*96(H)mm, 3.6(W)*3.8(H)in
