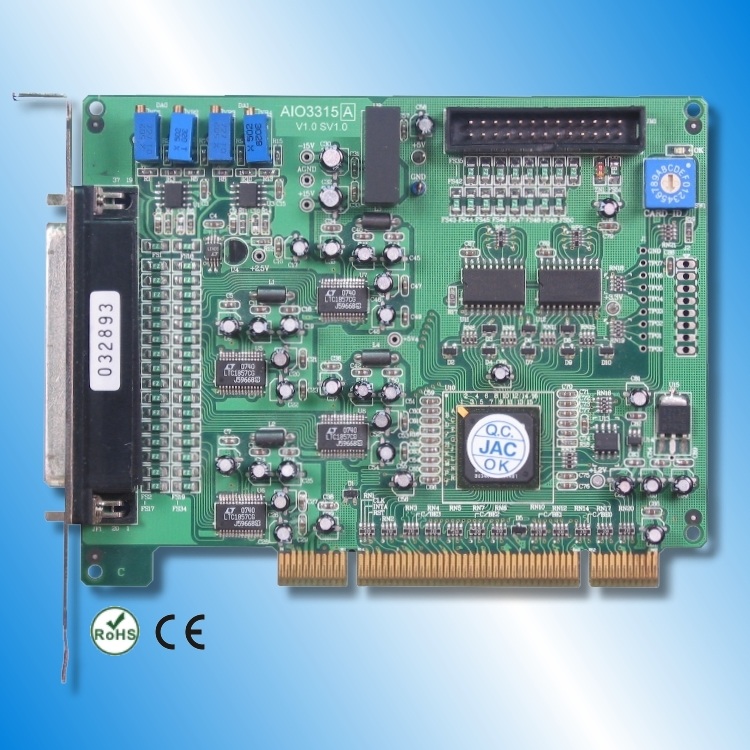

12/16-bit Analog I/O Card (32 AI 2 AO 16 TTL IO Card)

Enlarge

12/16-bit Analog I/O Card (32 AI 2 AO 16 TTL IO Card)

Modeeel: AIO-3315/A

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*On board Analog and digital I/O over voltage/ current protection
*32 channels 12-bit analog input (16-bit : AIO-3315A)
*Software selectable input range : -10V~ +10V, -5V~ +5V , 0~10V, 0~5V
*single end or differential analog input
*End of conversion interrupt
*2 channel 12-bit analog output, (16-bit : AIO-3315A)
*Output range : -10V~ +10V
*2 port TTL digital I/O channels
*Programmable digital filter at 100Hz, 200Hz, 1KHz and no de-bounce for input
*No output transition during start-up
*Output status read back
*External triggered interrupt (on IO00~IO07)
*32-bit timer with cross zero interrupt

Specifications

Analog input
*Input Channel : 32 channel single end or 16 channels differential
*Resolution : 12-bit (AIO-3315)
             16-bit (AIO-3315A)
*Input Range : -10V~ +10V, -5V~ +5V, 0~10V, 0~5V
*Input Impedance : 42K ohm(unipolar)
                  31K ohm (bipolar)
*conversion speed : 10us per channel
*Integral linearity error : -1~ +1 LSB(max, AIO-3315),
                           -3~ +3 LSB(max, AIO-3315A)
*Zero error : Bipolar -9 ~ +9 LSB(max, AIO3315),
                        -28~ +28 LSB(max, AIO-3315A)
              Unipolar -6~ +6 LSB(max, AIO3315),
                       -25~ +25 LSB(max, AIO-3315A)
*Full scale error : Bipolar -0.45% ~ +0.45%(max, AIO3315),
                              -0.4% ~ +0.4% (max, AIO-3315A)
                   Unipolar -0.75% ~ +0.75%(max)
*On oard analog input protection : -24V~ +24V 50mA
Analog output
*Output channel : 2
*Resolution : 12-bit (AIO3315)
             16-bit (AIO-3315A)
*Range : -10~ +10V
*Conversion time : < 1us
*Integral linearity error : -4~ +4 LSB(max)
*Differential linearity error : -0.5 ~ +0.5 LSB(max)
*Zero error : 9 LSB(max)
*Offset error : 9 LSB(max)
*Full scale error : -0.7% ~ +0.7%(max)
*On board analog output protection : 50mA
TTL I/O
*IO Channels : 16(max) TTL level
*Interrupt : at IO00~IO07
*On board input protection : 24V 50mA
*Output source : 35mA(peak) per channel
*Output Sink : 35mA(peak) per channel
*On board IO channel protection : -24V~ +24V 50mA
Timer
*Channels : 1
*Data length : 32-bit
*Time Base : @1MHz
General
*Interrupt : from TTL port0 or Timer/counter
*Card ID : 4-bit
*Operation temperature : 0 OC ~ +70 OC
*Storage temperature : -20 OC ~ +80 OC
*Operation humidity : 5~95% RH, non-condensing
*Dimensions : 130(W) * 102(H)mm, 5.2(W) * 4.1(H)in
