2/4 Port Isolated RS-422/485 PCI Express x1 Communication Card

Enlarge

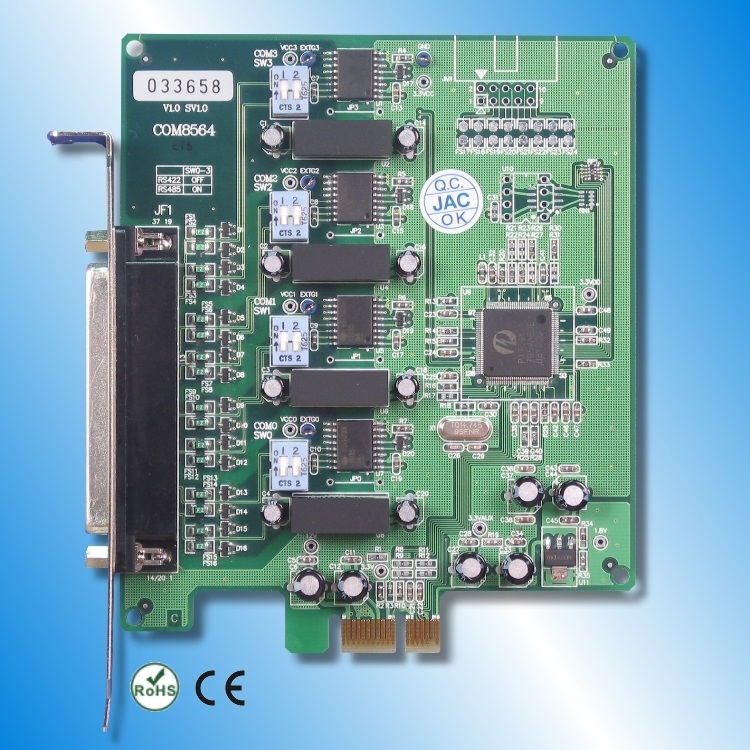

2/4 Port Isolated RS-422/485 PCI Express x1 Communication Card

Modeeel: COM-8562/4

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*Various selections :
RS-422/485 x2 (COM-8562)
RS-422/485 x4 (COM-8564)
*High speed magnetic isolation
*Channel to channel isolation
*PCI Express x1 compliant
*921.6 Kbps maximum baudrate for super fast data transmission
*128-byte FIFO and on-chip H/W, S/W flow control

Specifications

Hardware
*Controller Chip : 16C550C compatible
*Channel To Channel Isolation : 1000Vdc
*Bus : PCI Express x1
*Connector (s) : DB25 female (COM-8562)
DB37 female (COM-8564)
Serial Interface
*Serial Standards : RS-422/485
*Number of Ports : 4
*Number of Boards : 4 per PC (max)
Serial Communication Parameters
*Baudrate : 110 bps to 921.6 Kbps
*Data Bits : 5, 6, 7, 8
*Stop Bits : 1, 1.5, 2
*Parity : None, Even, Odd, Space, Mark
*Flow Control : None, Hardware, Xon / Xoff
*I/O Address : Assigned by BIOS
*IRQ : Assigned by BIOS
Serial Signals
*RS-422 : TXD+, TXD-, RXD+, RXD-, GND
*RS-485 (2W) : D+, D-, GND
General
*Power Requirement : 3.3Vdc
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 112(W) * 115(H) mm, 4.5(W) * 4.6(H) in
