Show Info
Date: 2011/10/12-2011/10/15
Venue:
Saigon Exhibition & Convention Center (SECC)
Organizer:
Yorkers Trade & Marketing Service Co., Ltd.

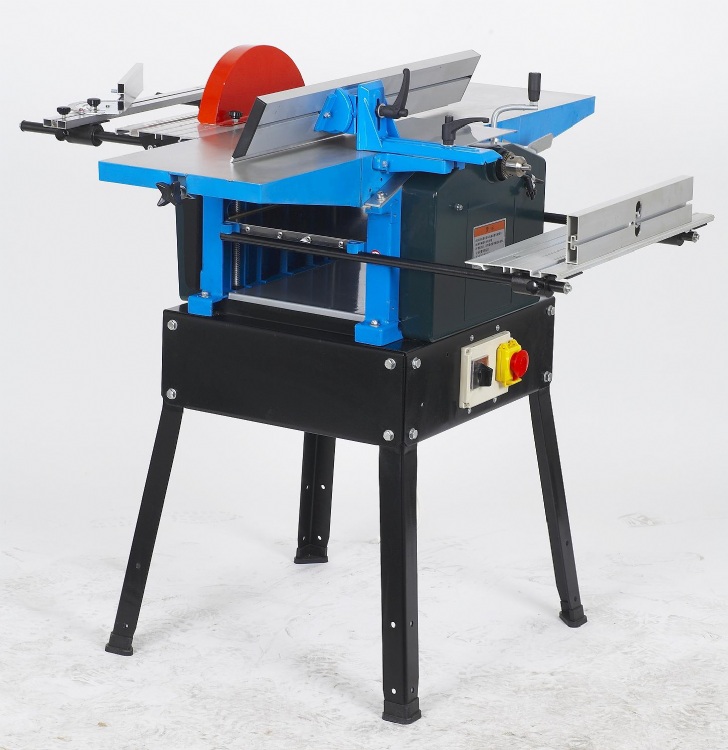

multifunclional woodworking machine
Modeeel: XS-05
Industry: Woodworking Machinery Industry / Others / Other Woodworking Machines
Supplier; Ningbo Xieshun Machinery & Electronics Co., Ltd.
Booth No: 251
Characteristics
The XS-05 can do planning and thicknessing from0°∼90°,it also has the function of sa wing and drilling
Specifications
Motor: 2.2KW 230V50HZ
Length of planing table: 1015mm
Length Thicknessing Table: 400mm
MAX.Working Width: 260mm
Max.Thicknessing Capacity: 160mm
Max.Depth of planing Cut: 3mm
Diameter of Cutter Block: Φ62.5mm
Noise: ＜90dB
Cutter Block Speed: 6000rpm
Thicknesser Feed Rate: 5m/min
Motor Speed: 2800rpm
Height of Planing Table: 840mm
Diameter of Saw Blade: Φ250mm
Max.Cutting Depth: 85mm
Max.Diameter or Drill: Φ13mm
Net Weight: 70Kg
