Home
Products
Radial Drilling Machine

Enlarge

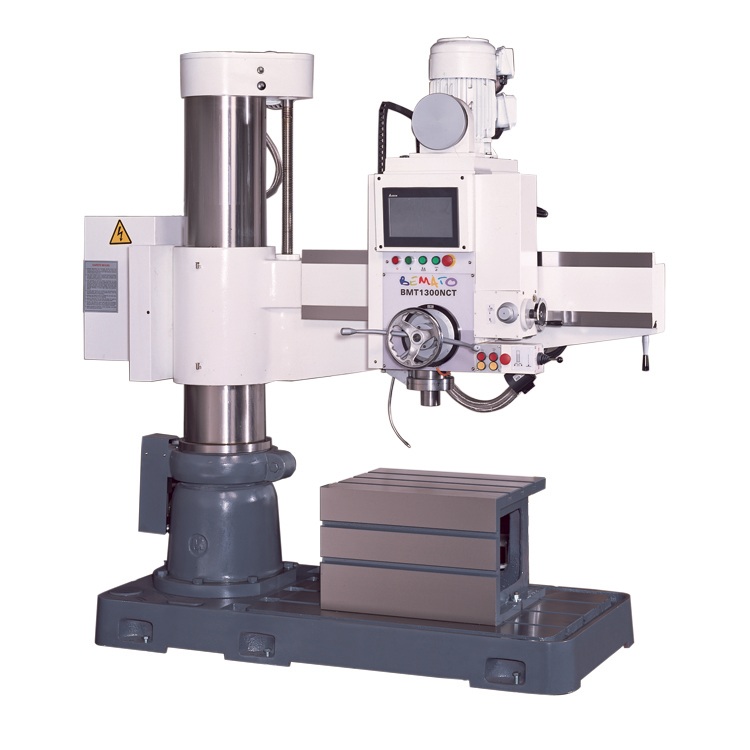

Radial Drilling Machine

Modeeel: BMT 1300NCT

Industry: Machine Tools / Drilling Machines / Radial Drilling Machines

Supplier; BENIGN ENTERPRISE CO., LTD.

Booth No: N/A

Characteristics

1. Double cylindrical column design provides maximun rigidity and accuracy.
2. Protection design applies to every transmission section.
3. Strong rib design of the base reinforces and provides the best stability.
4. Headstock gears are made ofCr-Mo alloy steel through hardened and precision ground procedures.
5. Precision hydranlic system allows fast, accurate , and easy operation.
6. Independent hydranlic and eletric system tosecuer power suppiling.
7. 7" touch screen.
8. Allow changing spindle speed and feeding rate any time during operation.
9. The depth ofdrilling and tapping can be set and memorized by NC system.
10. With automatic chip removal system.
11.Spindle motor has torque load setting for safety protection.
12. Humanity operation with high effciency.
13. Can be connected to a rotary table for automatic continuously drilling operation.

Specifications

1. Drilling capacity : steel:55 / M50 / 100
2. Drilling / Tapping / Boring : Cast iron :66 / M60 / 160
3. Spindle taper : MT5
4. Spindle speed : 30~1500RPM (H.L variable speed by inverter)
5. Max. Diatance column surface spindle center : 1250mm
6. Max. Diatance base to spindle : 1230mm
