Vertical Machining Center

Enlarge

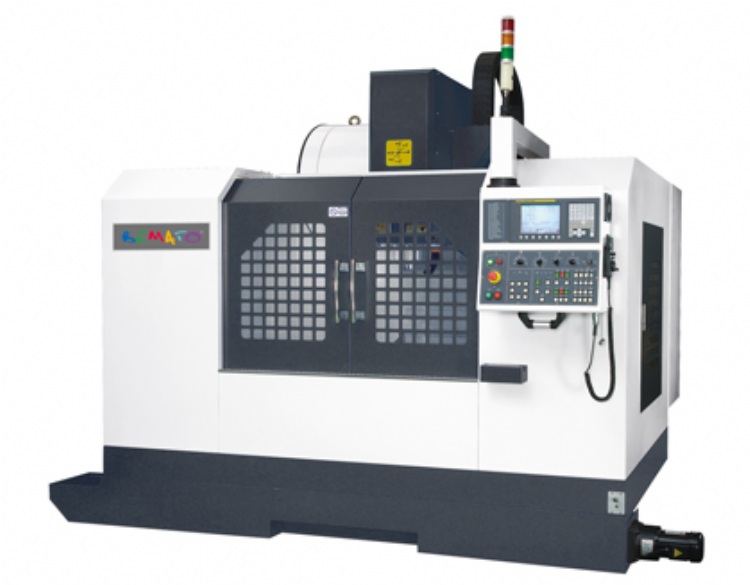

Vertical Machining Center

Modeeel: BMT 1050SV

Industry: Machine Tools / Milling Machines / CNC Vertical Milling Machines

Supplier; BENIGN ENTERPRISE CO., LTD.

Booth No: N/A

Characteristics

Controller:
1. The control panel is designed waterproof.
2. Selective Controllers: Heidenhain, Fanuc ,Siemens, Mitsubishi,Fagor, etc.
Spindle:
1. Standard accessory - Belt type
2. Optional accessories:
Direct couple spindle (for high speed matalworking)
Built-in spindle ( for high speed and precision metalworking).
Gear spindle ( for heavy duty machining).
3. Rotating speed: BT-40 8000rpm
BT-50 4500rpm(OPT.)
Machine Structure:
1.Designed in a square and four-boxway shape.
2. Float tools feeding system to prevent bearing from damage.
3. Four boxway with a wide-distance reinforcement to support saddle.
4. Having an A-shaped rib reinforcement in its interior.

Specifications

1. Table size : 1120×600mm
2. X , Y , Z , travel : 1050×625×625mm
3. Spindle nose to table : 120~745mm
4. Spindle center to column : 660mm
5. T-slots (W×D×No.) : 18×100×5
6. Max loading capacity : 1000kgs
7. Spindle motor : 7.5/11kw, OPT.: 11/15kw
8. Spindle taper : BT40, OPT.: BT50
9. Spindle Belt 65~8000rpm
10. Rapid feed rate of X/Y : 20m/min
11. Rapid feed rate of Z : 18 m/min
12. NO. of tools / ACT (type) : 24(30) Armless
13. Max. tool weight : 8kgs
14. Max.tool diameter : 90 / (150) mm
15.Machine height 2806mm
Machine length × width : 3763×2560
Machine weight : 7500kgs
