HORIZONTAL MACHINING CENTER

Enlarge

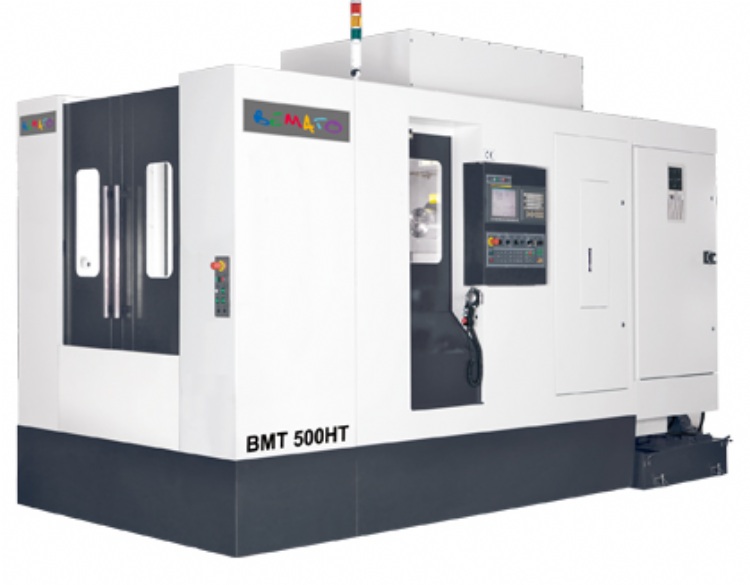

HORIZONTAL MACHINING CENTER

Modeeel: BMT 500HT

Industry: Machine Tools / Machining Centers / Machining Centers, Horizontal

Supplier; BENIGN ENTERPRISE CO., LTD.

Booth No: N/A

Characteristics

1. High tensile and stress relief fine quality castings with ribs reenforced.
2. Robust, rigid and compact design.
3. Moving column moves on one piece robust base with 3 wide span linear ways.
4. Y axis spindle headstock moves without counter balance weight. This ensures up & down movements run smoothly at high feed rate.
5. Chips are flushed to both left & right side and then two chip augers move chips to the rear of the machine.
6. Linear ways on X axis saddle are designed in differential height which increase rigidity and accuracy.
7. X & Y axis 2 linear ways.
8. Z axsi 3 linear ways.
9. wide span linear ways for the best rigidity.
10. Rapid feeds up 48M/min.

Specifications

1. Table size : 500×500mm
2. X, Y, Z travel : 620mm
3. Spindle tapper : αp 22i(11/15kw)-Belt type
αp 112Li(18.5/22kw)-Belt-in type
4. Spindle taper ; ISO40
5. Sindle speed : 8000(Std.) / 10000rpm (Opt.) Belt type
12000(Opt.) / 15000rpm (Opt.) Belt-in type
6. Distance from table center to spindle nose : 130~750mm
7. Distance from table surface to spindle center : 110~730mm(Belt type) 160~780mm(Built-in)
8. Machine Dimensions L×W×H : 4550×2650×2900mm
Net weight : 10500kgs
