S45C Induction Hardening Chromium Plated Bar/ Guide-Rod

Enlarge

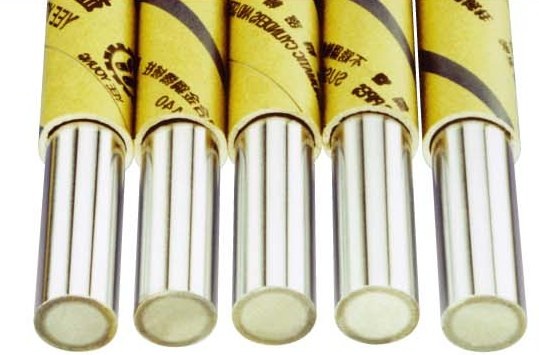

S45C Induction Hardening Chromium Plated Bar/ Guide-Rod

Modeeel: YR45IB

Industry: Machinery Parts and Components / Machinery Parts and Components / Spindles

Supplier; YEE YOUNG INDUSTRIAL CO., LTD.

Booth No: I1025

Characteristics

Through heat treatment, the hardness is greater than common harden chrome plated bar. Induction chrome shaft reaches uniform hardening thickness with no soft spots. Suitable for piston shaft, hydraulic cylinder rod, pneumatic cylinder rod, solid rod, mechanical column bar, linear slide rail, sport equipment, forklift, bending machine, can body maker, earth scraper, and other agricultural machinery.

Specifications

Dia m/m	06	07	08	10	12	15	16	18	20	22	25
Tolerance μm	-5 -14	-5 -14	-5 -14	-5 -14	-6 -17	-6 -17	-6 -17	-6 -20	-7 -20	-7 -20	-7 -20
Hardening Depth	1.0mm up					1.5mm up
Standard Length	2000~3500mm

Dia mm	28	30	35	40	45	50	60	65	70
Tolerance μm	-7 -20	-7 -20	-9 -25	-9 -25	-9 -25	-9 -25	-10 -29	-10 -29	-10 -29
Hardening Depth	2.0mm up			2.5mm up			3.0mm up
Standard Length	2000~3500mm		6000mm up
