8/16/24 AI 16 TTL Digital IO 2 32-bit Timer / Counter Card

Enlarge

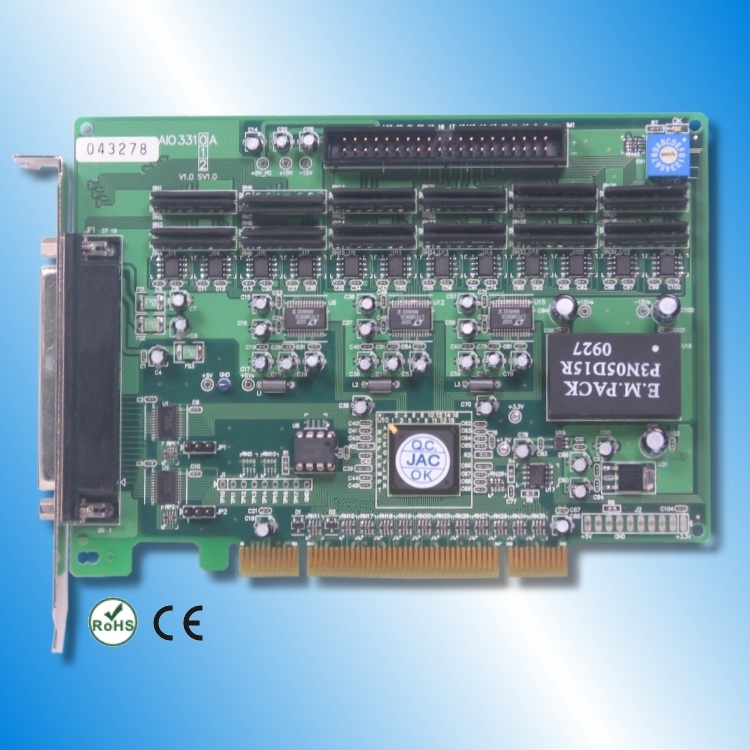

8/16/24 AI 16 TTL Digital IO 2 32-bit Timer / Counter Card

Modeeel: AIO-3310/1/2A

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*8/16/24 channel 16-bit analog inputs (standard : 8 channels)
*Software selectable input range : -10V~ +10V, -5V~ +5V , 0~10V, 0~5V
*single end or differential analog input
*Factory pre-calibrated analog conversion accuracy
*2 byte-wide programmable TTL I/O
*DIO00, DIO01 as trigger/counter in, DIO10,DIO11 as trigger out of timer/counter function
*2 32-bit multifunction timer/counters
- programmable one-shot
- square wave generator
- event counter
- PWM generator
*Software key function

Specifications

Analog Input
*Input Channel : 8 AI : AIO-3310A,
                 16 AI : AIO-3311A,
                 24 AI : AIO-3312A
*Resolution : 16-bit
*Input Type : single end or differential
*Input Range : -10V~ +10V, -5V~ +5V , 0~10V, 0~5V
*Input Impedance: 100K ohm
*Range Selection : software selectable per chip
*Conversion Speed : 6us per channel
*Accuracy : full range within 5mV (after calibration)
*Integral Linearity Error : -3 ~ +3 LSB(max)
*Zero Error : - 28 ~ +28 LSB
TTL I/O
*I/O Channels : 16 TTL (port 0, port 1)
*Configuration : byte input/output
*Output Capacity : (sink or source) 24ma @5V
*Output at power on : jumper configurable at high or low
Timer/Counter
*Channels : 2
*Data Length : 32-bit
*Specific Input : trigger in/counter in via digital I/O port 0
*Specific Output : trigger out/counter out via digital I/O port 1
*Time Base : timer @1MHz, counter @33MHz
*Multi-Functions : - programmable one-short
                  - square wave generator
                  - event counter
                                - PWM generator
General
*Interrupt : from TTL or Timer/counter
*PCI data width : 32-bit
*Card ID : 4-bit
*Operation Temperature : 0 OC ~ +70 OC
*Storage Temperature : -20 OC ~ +80 OC
*Operation Humidity : 5~95% RH, non-condensing
*Dimension :156(W)*112(H)mm, 6.2(W)*4.5(H)in
