Home
Products
PCI-bus AI*8 I/O Card /PCI-bus AI*8+DIO*16 I/O Card

Enlarge

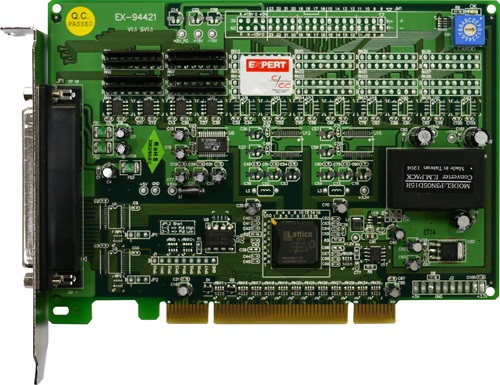

PCI-bus AI8 I/O Card /PCI-bus AI8+DIO*16 I/O Card

Modeeel: EX-94421;EX-94421A

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; TOPSCCC Technology CO., LTD.

Booth No: I932

Characteristics

EX-94421A特色:

General:
■ PCI data width ─ 32 Bits
■ Card ID ─ 4 bits
■ Interrupt ─ software disable/enable
■ Dimension ─ 156(W)*112(H)mm , 6.2(W) * 4.5(H)in

Analog block:
■ input channels ─ 8 channel single end or differential (standard:8 channels)
■ resolution ─ 12bit
■ input range ─ -10V~ +10V, -5V~ +5V , 0~10V, 0~5V
■ range selection ─ software selectable
■ conversion speed ─ 6us per channel
■ accuracy ─ full range within 9mV

Digital I/O block:
■ i/o channels ─ 16 TTL (port0,port1)
■ configuration ─ byte input /output

Timer/Counter block:
■ channels ─ 2
■ data length ─ 32 bit
■ specific input ─ trigger in/ counter in via digital I/O port0
■ specific output ─ trigger out / counter out via digital I/O port 1
■ time base ─ PCI system clock (33/66MH)
■ functions ─
-- programmable one-shot
-- square wave generator
-- event counter
-- PWM generator

EX-962137 37P Din rail mounted dummy wiring board
■ Connection cable ─ D-type EX-962137 37P cable to connect main and wiring board
■ Dimension ─ 90(W)*113(L)*60(H)mm , 3.6(W)*4.5(L)*2.4(H)in

EX-94421 特色:
General:
■ PCI data width ─ 32 Bits
■ Card ID ─ 4 bits
■ Dimension ─ 156(W)*112(H)mm , 6.2(W) * 4.5(H)in

Analog block:
■ input channels ─ 8 channel single end or differential (standard:8 channels)
■ resolution ─ 12bit
■ input range ─ -10V~ +10V, -5V~ +5V , 0~10V, 0~5V
■ range selection ─ software selectable
■ conversion speed ─ 6us per channel
■ accuracy ─ full range within 9mV

EX-962137 37P Din rail mounted dummy wiring board (Option)
■ Connection cable ─ D-type EX-962137 37P cable to connect main and wiring board
■ Dimension ─ 90(W)*113(L)*60(H)mm , 3.6(W)*4.5(L)*2.4(H)in

Specifications

EX-94421A特色:

General:
■ PCI data width ─ 32 Bits
■ Card ID ─ 4 bits
■ Interrupt ─ software disable/enable
■ Dimension ─ 156(W)*112(H)mm , 6.2(W) * 4.5(H)in

Analog block:
■ input channels ─ 8 channel single end or differential (standard:8 channels)
■ resolution ─ 12bit
■ input range ─ -10V~ +10V, -5V~ +5V , 0~10V, 0~5V
■ range selection ─ software selectable
■ conversion speed ─ 6us per channel
■ accuracy ─ full range within 9mV

Digital I/O block:
■ i/o channels ─ 16 TTL (port0,port1)
■ configuration ─ byte input /output

Timer/Counter block:
■ channels ─ 2
■ data length ─ 32 bit
■ specific input ─ trigger in/ counter in via digital I/O port0
■ specific output ─ trigger out / counter out via digital I/O port 1
■ time base ─ PCI system clock (33/66MH)
■ functions ─
-- programmable one-shot
-- square wave generator
-- event counter
-- PWM generator

EX-962137 37P Din rail mounted dummy wiring board
■ Connection cable ─ D-type EX-962137 37P cable to connect main and wiring board
■ Dimension ─ 90(W)*113(L)*60(H)mm , 3.6(W)*4.5(L)*2.4(H)in

EX-94421 特色:
General:
■ PCI data width ─ 32 Bits
■ Card ID ─ 4 bits
■ Dimension ─ 156(W)*112(H)mm , 6.2(W) * 4.5(H)in

EX-962137 37P Din rail mounted dummy wiring board (Option)
■ Connection cable ─ D-type EX-962137 37P cable to connect main and wiring board
■ Dimension ─ 90(W)*113(L)*60(H)mm , 3.6(W)*4.5(L)*2.4(H)in
