PCI-bus DIO*48 I/O Card(Support Linux)

Enlarge

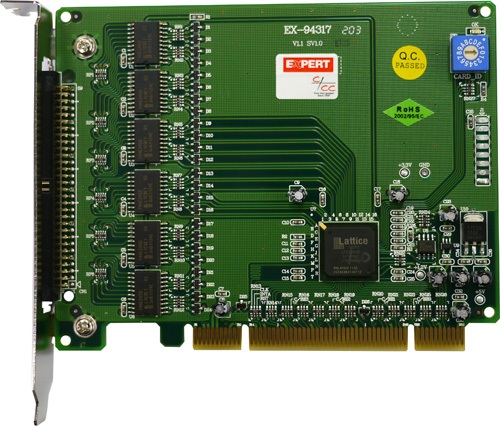

PCI-bus DIO*48 I/O Card(Support Linux)

Modeeel: EX-94317

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; TOPSCCC Technology CO., LTD.

Booth No: I932

Characteristics

Feature:

Input
■ Input : 48(max) TTL level
■ Interrupt at IN00 ~IN07

Output
■ Output level: 48(max) TTL level
■ Output source : 35mA(peak) per channel
■ Output Sink : 35mA(peak) per channel

Main Card General
■ Card ID : 4 bits
■ Connector : 60-pin male flat-cable connector
■ Operation temperature : 0 to +70 degree C
■ Storage temperature : -20 to +80 degree C
■ Operation humidity : 5~95% RH, non-condensing
■ Dimensions : 130(W) * 102(H) mm , 5.2(W) * 4.1(H)in

Specifications

Input
■ Input : 48(max) TTL level
■ Interrupt at IN00 ~IN07

Output
■ Output level: 48(max) TTL level
■ Output source : 35mA(peak) per channel
■ Output Sink : 35mA(peak) per channel

Main Card General
■ Card ID : 4 bits
■ Connector : 60-pin male flat-cable connector
■ Operation temperature : 0 to +70 degree C
■ Storage temperature : -20 to +80 degree C
■ Operation humidity : 5~95% RH, non-condensing
■ Dimensions : 130(W) * 102(H) mm , 5.2(W) * 4.1(H)in
