Serial to Ethernet Converter with Digital I/O

Enlarge

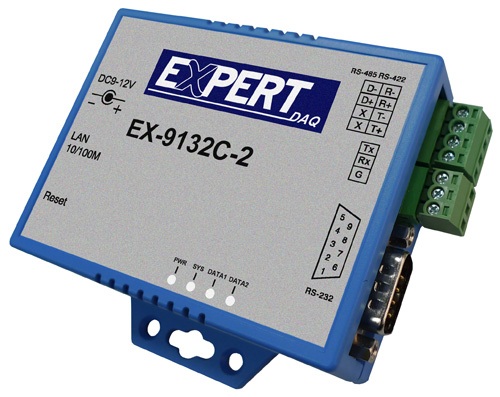

Serial to Ethernet Converter with Digital I/O

Modeeel: EX-9132C-2

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; TOPSCCC Technology CO., LTD.

Booth No: I932

Characteristics

■ CPU: 32-bits ARM-Cortex-M3 CPU , 50 MHz(Max)

■ RAM: 64 K Bytes SRAM

■ ROM: 256 K Bytes Flash ROM

■ Ethernet:
Port Type RJ-45 Connector
Speed 10 /100 M bps ( Auto Detecting )
Protocol ARP , IP , ICMP , UDP , TCP , HTTP , DHCP , TELNET
Mode TCP Server / TCP Client / UDP
Setup HTTP Browser Setup (IE & Netscape)
Security Setup Password
Protection Built-in 1.5KV Magnetic Isolation

■ Serial Port * 2 ports:
Port RS-232 * 1 Port (DB9) , RS-232/422/485 * 1 Port ( Auto Detect )
Speed 300 bps~115.2 K bps
Parity None , Odd , Even , Mark , Space
Data Bit 5 , 6 , 7 , 8
Stop Bit 1 , 2
Port-1 RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
Port-2 RS-232 Pins : Rx , Tx , GND
RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals

■ Digital I/O * 8 TTL

■ Watch Dog Function

■ Virtual Support Windows XP

■ Power: DC 9 –24 V , 500mA

■ Led Lamp: SYS (PWR) , LAN , Rx , Tx

■ Environment: Operating Temperature: 0℃〜60℃Storage Temperature : -10℃〜70℃

■ Dimensions: 90 * 60 * 20 mm ( W * D * H )

■ Weight: 65 gm

Specifications

■ CPU: 32-bits ARM-Cortex-M3 CPU , 50 MHz(Max)

■ RAM: 64 K Bytes SRAM

■ ROM: 256 K Bytes Flash ROM

■ Ethernet:
Port Type RJ-45 Connector
Speed 10 /100 M bps ( Auto Detecting )
Protocol ARP , IP , ICMP , UDP , TCP , HTTP , DHCP , TELNET
Mode TCP Server / TCP Client / UDP
Setup HTTP Browser Setup (IE & Netscape)
Security Setup Password
Protection Built-in 1.5KV Magnetic Isolation

■ Serial Port * 2 ports:
Port RS-232 * 1 Port (DB9) , RS-232/422/485 * 1 Port ( Auto Detect )
Speed 300 bps~115.2 K bps
Parity None , Odd , Even , Mark , Space
Data Bit 5 , 6 , 7 , 8
Stop Bit 1 , 2
Port-1 RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
Port-2 RS-232 Pins : Rx , Tx , GND
RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals

■ Digital I/O * 8 TTL

■ Watch Dog Function

■ Virtual Support Windows XP

■ Power: DC 9 –24 V , 500mA

■ Led Lamp: SYS (PWR) , LAN , Rx , Tx

■ Environment: Operating Temperature: 0℃〜60℃Storage Temperature : -10℃〜70℃

■ Dimensions: 90 * 60 * 20 mm ( W * D * H )

■ Weight: 65 gm
