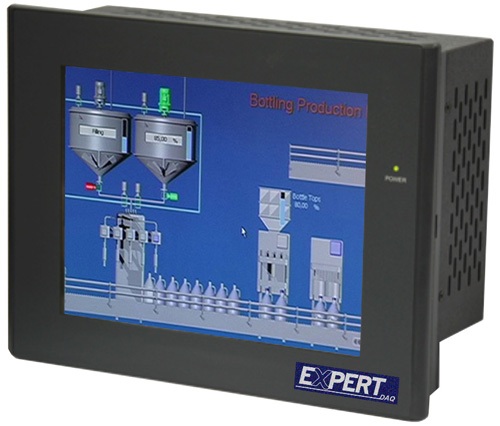

HMI

Modeeel: EX96087-A

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; TOPSCCC Technology CO., LTD.

Booth No: I932

Characteristics

Fanless design
8” High brightness TFT LCD with resolution of 800x600
IntelR Atom™ N270 1.6GHz processor, FSB 533MHz
NEMA 4/ IP 65 compliant front panel
Sealed resistive touch screen
One 200-pin SO-DIMM socket, up to 2GB DDR2 533MHz SDRAM
DC 11~28V wide-range power input

Specifications

System Specifications
Processor IntelR Atom™ N270 1.6GHz, FSB 533MHz
System Memory 1 x 200-pin SO-DIMM socket, support 533MHz up to 2GB SDRAM
System Chipset IntelR 945GSE + ICH7M
External I/O Port
4 x USB ports
2 x RJ-45 ports
2 x RS-232 (COM1/2) , 1 x RS-232/422/485 (COM3)
1 x VGA port
1 x PS/2 KB & MS
1 x Audio Min-in, Line-out
1 x DC power input
Solid Storage Disk 1 x 2.5” SATA HDD, 1 x external CF slot
Expansion Slots None
OS Support WindowsR CE 5.0, XP Pro, XP embedded
LCD
Display Type 8” TFT-LCD
Max. Resolution 800x600
Max. Color 262K
Luminance (cd/m2) 400
View Angle H:130° / V:120°
Backlight Lifetime 40,000hrs
Touch Screen
Type Analog resistive
Light Transmission 80%
Power Supply
Power Input DC 11~28V
Mechanical Specifications
Construction Plastic molding housing / Black
IP Rating IP 65 on Front Panel
Mounting Panel / VESA 75x75 Mount
Dimension 231*176*99
Environmental
Operating Temperature 0~50 ﾟC
