CNC Turning and Milling Center
Release dateG2018/1/2
MT-Series, CNC Turning and Milling Center, performs different tasks simultaneously. With MT-Series, there will be no need to cost the time and labor to keep loading and unloading materials between a lathe and a machining center. MT-Series provides excellent turning and milling ability on just one machine with high rigidity and high accuracy that would be your new alternative for metalworking.
FEATURES:
P Rigid machine structure.
P Multitasking: turning and milling on the same machine
P Maximum turning/milling length: 3000mm to 6000mm
P Maximum milling dia. 420mm
P Standardized 12 tools for turning tasks; up to (additionally more than) 24 optional tools for milling tasks available.
P MT-Series can be used as a machining center for its spacious work table (with three 22mm T-slots).
MT-Series has patents registered in the following countries:
P Taiwan M515440
P China 5475749
P Japan 320 4498
P German 202016101409
P USA (Pending)
P Korea (Pending)
P Thailand (Pending)
P Turkey (Pending)
P Russia (Pending)
AttachmentG

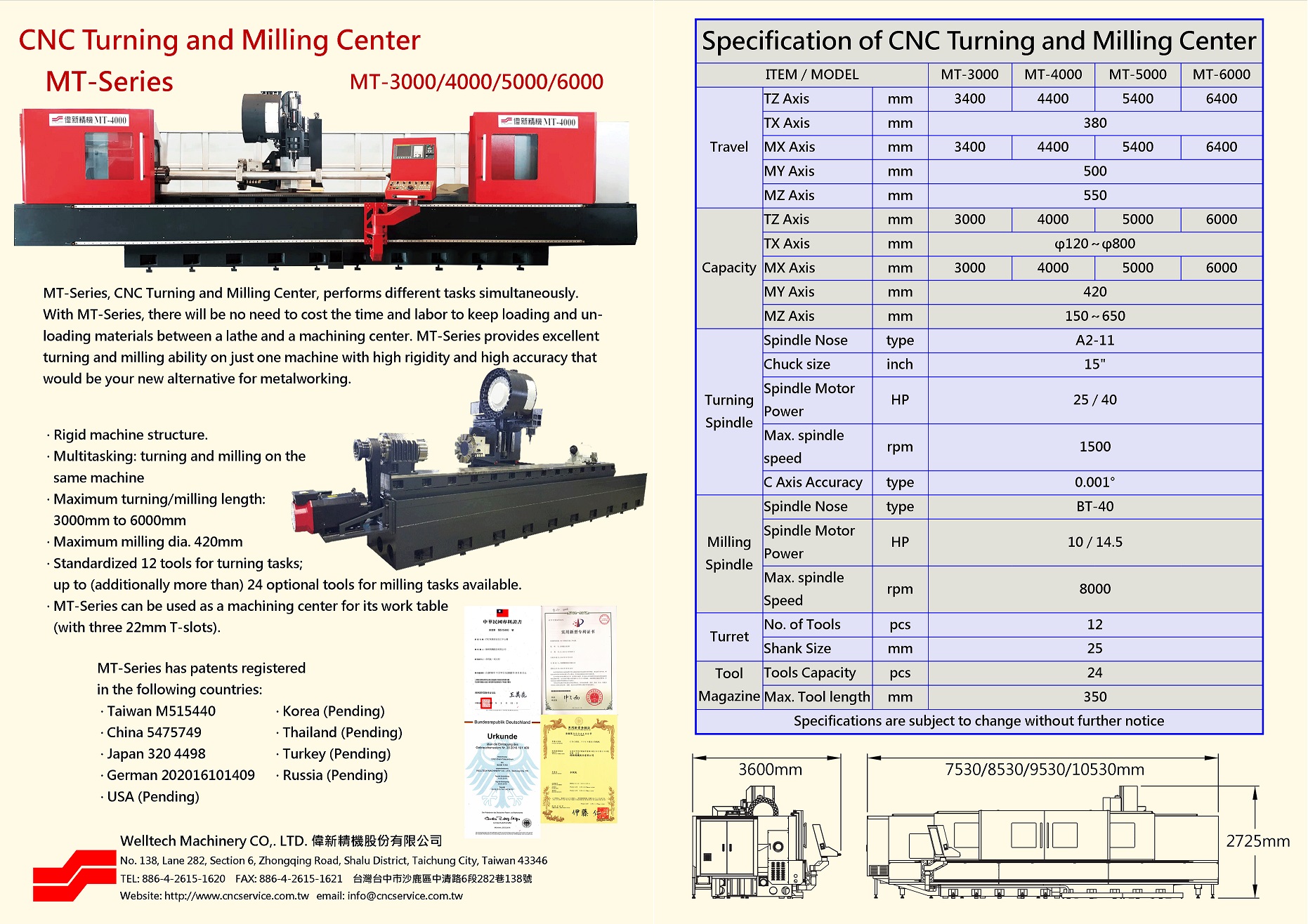

Specification (English)

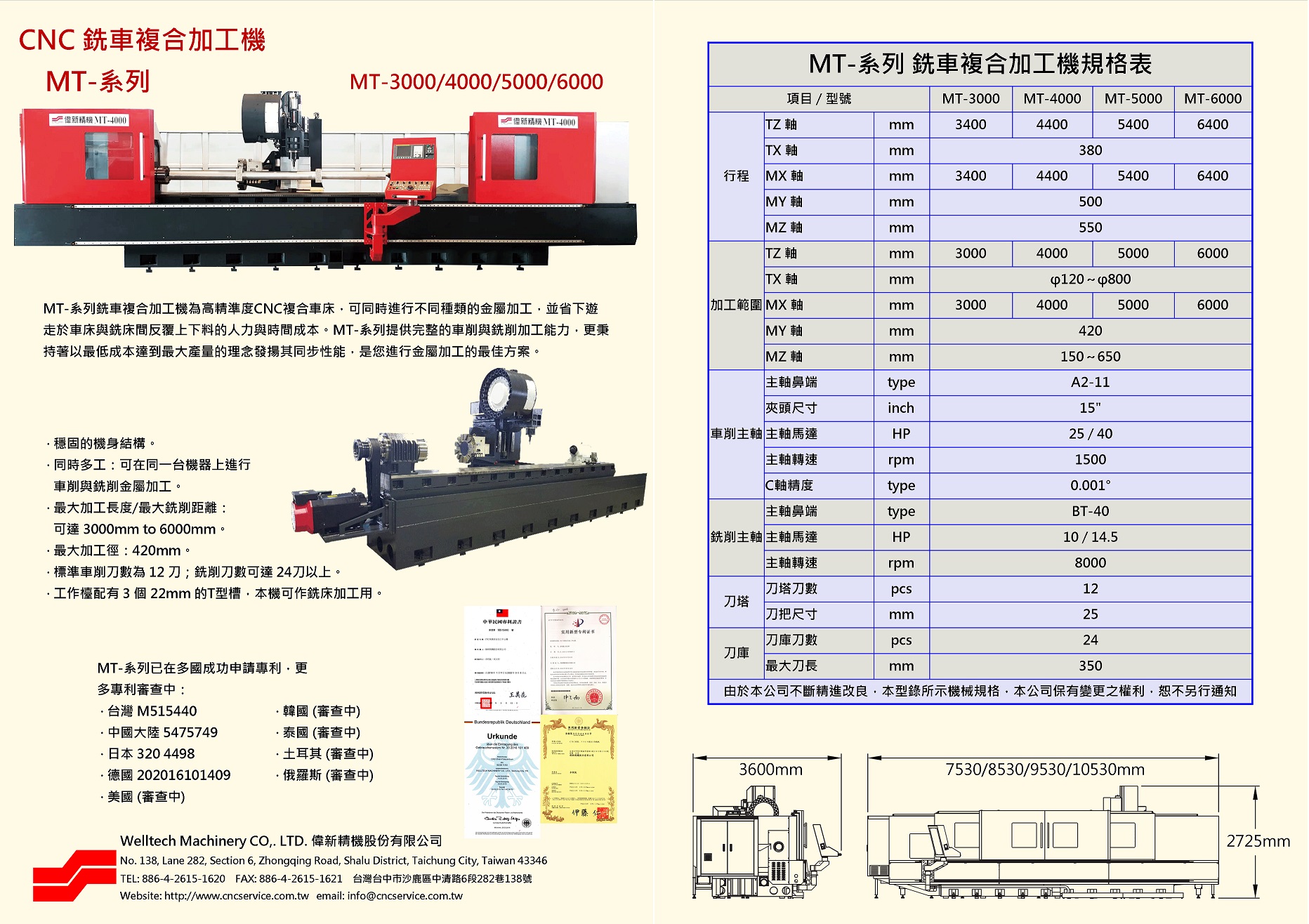

Specification (Chinese)
