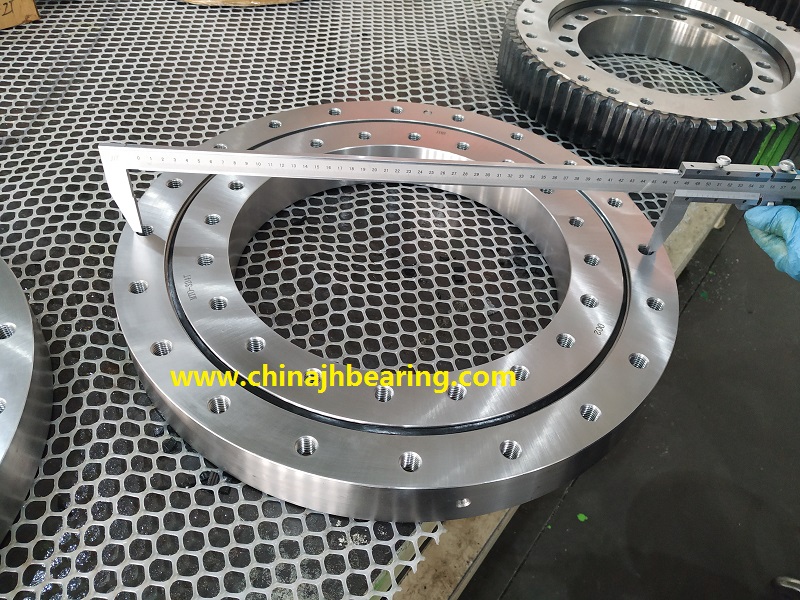

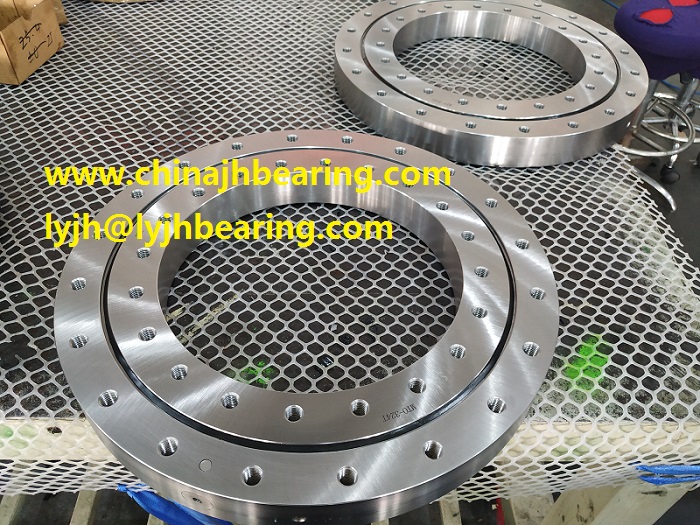

MTO-324T BEARING 520.3x323.85x52.4mm
Release date：2022/4/17
MTO-324T Belong to four point contact ball slewing bearing without teeth,double seal,5 year quality guaranteed
We had offered the slewing bearing/turntable bearing MTO-324T to our cotton equipment customer ,The structure belongs to four point contact ball slewing bearing series. Here our slewing bearing MTO-324T quality guaranteed 5 years .Now We will introduce Slewing bearing MTO-324T specification as follows:
Slewing bearing type MTO-324T
Dimension: 520.3x323.85x52.4mm
20.486x12.75x2.022 inch size
Outer dia： 520.3 mm(20.48 inch size)
Inner dia： 323.85mm(12.75 inch size)
Height： 52.4 mm(2.022 inch size)
Weight 52 kgs
Outer ring hole qty 20 pcs
Inner ring hole qty 20 pcs
Outer ring and inner ring material 50Mn
Ball bearing LYC ball Brand ,GCr15SiMn
Lubrication Grease lubrication
Seal Double seal
Seal material NBR
