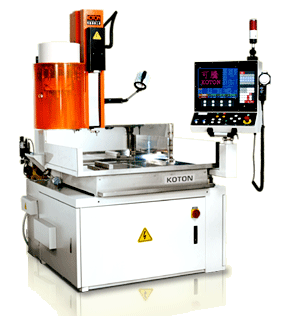

NEW PRODUCTS VIDEO - KTC-540ATC
Release date：2009/12/23
Automatic 16 & 30 copper tube changers available.
Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
Provide 1μ optical scale, linear slideway and ballscrew ensure very accurate movements.
Spindle shaper head, X & Y axes motion on head , fixed bed; for automotive applications and other small bore machining on sheet metal molds/dies.
Automatic copper tube deviation correction.
NC program G-code and DXF files could be directly read; Automatically finds the start cutting point and begins a fine hole drilling process.
The machining coordinate can be input directly when NC program is not available.
Automatic edge, internal diameter finding, and centering. Coordinates can rotate at any angle. Mirror image function. Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
Automatic illustrates the path of current and next drilling position with color.
Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and returns to complete any that are too shallow.)
The flushing medium used by this machine is distilled water - environment friendly.
Data could be input by 3.5" floppy, USB, or transfer through RS232.
Direct and easy learning dialogue operation interface.
Website：http://www.youtube.com/watch?v=qG2Ms8CLt3s&feature=channel
Attachment：
automatically change copper drilling edm
