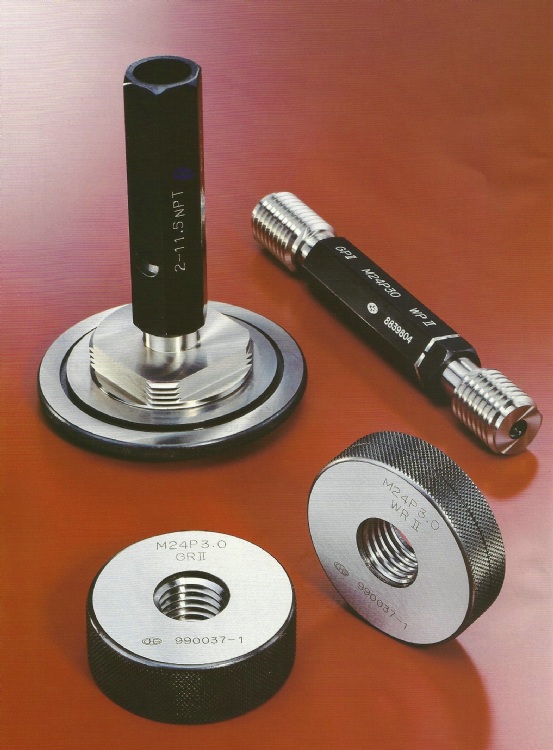

Thread Plug Gauge and Thread Ring Gauge
Model: SS-GP NP GR NR
Category: Mold and Die Industry / Peripheral Equipment Mold &Die / Inspection & measurement
Characteristics
Thread Plug Gauge and Thread Ring Gauge
Metric Thread : ISO 6H & 6g (JIS B0251)
Metric Thread : JIS II (JIS B0251 B0252)
UNC Unified Coarse Thread ( ANSI B1.2-2A 2B )
UNF Unified Fine Thread ( ANSI B1.2-2A 2B )
UNEF Unified Extra Fine Thread ( ANSI B1.2-2A 2B )
UNS Unified Special Thread ( 2A 2B)
BC Bicycle : JIS B0225 SM Sewing Machine : JIS II Class ( JIS B0226 )
PS British Standard Parallel Pipe Thread Gages : JIS B0254 Annex.BS21
PF (G) Parallel Pipe Thread : A Class ( JIS B0254 ) NPSM American Standard Parallel Pipe Thread : 2A 2B ( ANSI B2.1 )
NPT American Standard Taper Pipe Thread Gages : ANSI B2.1
NPTF American Standard Dry Seal Taper Pipe Thread Plug Gages : ANSI B1.20.5
NPTF American Standard Dry Seal Taper Pipe Thread Ring Gages : ANSI B1.20.5
PT : JIS B0253 BS21 R(Rc/Rp) : JIS B0253. ISO7/2
Cylindrical Plug Gages
Ring Gages & Snap Gages
Taper Gages
Specifications
Thread Plug Gauge and Thread Ring Gauge
Metric Thread : ISO 6H & 6g (JIS B0251)
Metric Thread : JIS II (JIS B0251 B0252)
UNC Unified Coarse Thread ( ANSI B1.2-2A 2B )
UNF Unified Fine Thread ( ANSI B1.2-2A 2B )
UNEF Unified Extra Fine Thread ( ANSI B1.2-2A 2B )
UNS Unified Special Thread ( 2A 2B)
BC Bicycle : JIS B0225 SM Sewing Machine : JIS II Class ( JIS B0226 )
PS British Standard Parallel Pipe Thread Gages : JIS B0254 Annex.BS21
PF (G) Parallel Pipe Thread : A Class ( JIS B0254 ) NPSM American Standard Parallel Pipe Thread : 2A 2B ( ANSI B2.1 )
NPT American Standard Taper Pipe Thread Gages : ANSI B2.1
NPTF American Standard Dry Seal Taper Pipe Thread Plug Gages : ANSI B1.20.5
NPTF American Standard Dry Seal Taper Pipe Thread Ring Gages : ANSI B1.20.5
PT : JIS B0253 BS21 R(Rc/Rp) : JIS B0253. ISO7/2
Cylindrical Plug Gages
Ring Gages & Snap Gages
Taper Gages
