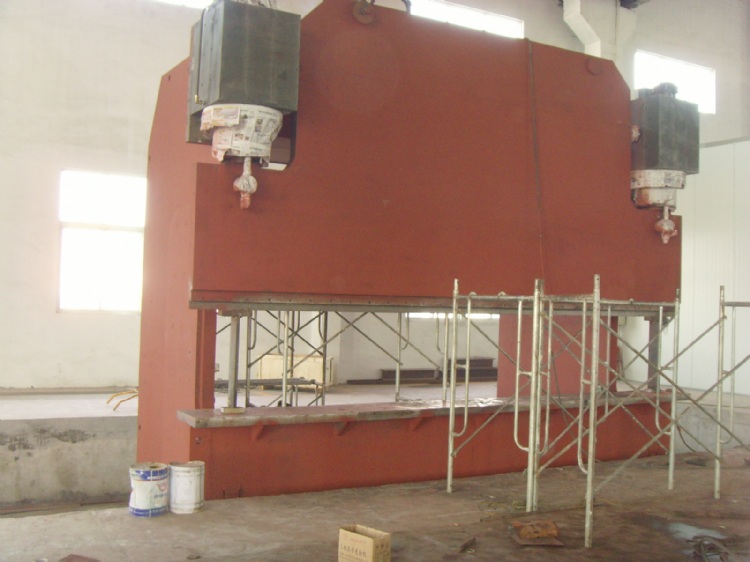

hydraulic CNC press brake
Model: WD67K-1000T/6000
Category: Machine Tools / Metal Forming Machine Tools / Bending Machines
Characteristics
On both sides of the main cylinder synchronization of German imports of electro-hydraulic servo valve and the Italian grating closed-loop control, accurate feedback, the slider running accurately, thereby bending the accuracy slider repeat positioning accuracy.
Feeding mechanism, using fully functional block can choose to control multiple backgauge axis. The functional parts in the back gauge, Such as rail, screw, bearings, etc. selection of imports, to ensure that the backgauge backgauge accuracy.
Rack of the components adopts split steel plate welded structure, with tempering process and vibration aging treatment, eliminating welding stress and the working stress caused by deformation, ensuring the precision of the machine tool maintenance
The fuselage uses the split assembled structure, convenient transportation, convenient processing, can ensure the precision of the machine tool.
Specifications
Nominal force 10000 kN
Bending length 6000 mm
Poles distance 5200 mm
Throat depth 600 mm
Slider travel 500 mm
Dies height 1000mm
Slider fast down speed 80mm/s
Slider return speed 80mm/s
Slider work speed 7mm/s
Main motor 45 KW
CNC system DELEM DA52
Number of control axes 3+1
Dimension L×W×H(mm) 6200X3200×6360
Weight 88 T
