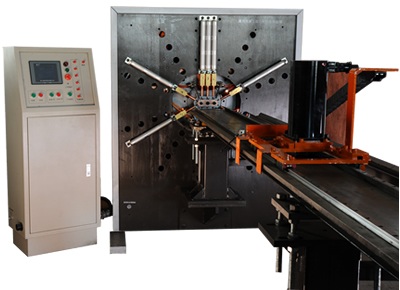

ZGTEK Co., Ltd Oval filter cage welding machine
Model: DLN-16B
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Welding Equipment
Characteristics
Oval filter cage welding machine
gear rack rail,server motor,high accuracy
ring space precision:0.1mm
pulling speed:0.4m/s
Specifications
Oval filter cage welding machine
- Control unit: KD-DL08D
- Weld galvanized(GI) wire direcly without damaging zinc plating
- Ring space is programmable and bag cage is pulled by mechanism formed by gear rack and step motor, no accumulated locating tolerance, ring space precision is 0.1mm, pulling speed is 0.4m/s, especially applicable to the bag cage with different ring spaces
Specification
- Input voltage: 380V(2 phase) or specified by customer
- Power frequency: 50/60Hz
- Cooling method: natural cooling
- Air pressure: 0.6-0.8 MPa
- Insulation grade: F
- Power capacity: 80 KVA
- Instant power in sync mode: 36 KVA
- Instant power in async(time-sharing) mode: 18 KVA
- Air flow: 300 L/min
- Weight: about 1300KG
Features
- Rails (up to 9000mm) and carriage equipped and connected to the welding unit. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages
- Equipped with auto feeding unit, no restrictions on ring space
- Four air tanks, short air route inside the machine ensures quick response of the cylinder
- 25mm front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured
- Stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s
- Controlled by micro-computing unit
- Time-sharing power-on transformer reduces the burden on local electricity grid
