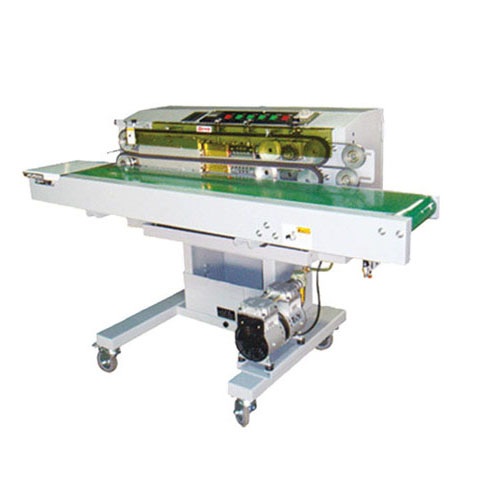

High vacuum horizontal nozzle vacuum band sealer
Model: DPCV-903X
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag Sealing Machines
Characteristics
The sealing bar could be tilted down 0 - 20 degree.
Outer housing: powder coating or stainless steel housing.
Available for: foods, chemicals and hardware parts.
Packing material: any kinds of heat sealable material.
The length from bag seal to bag lid: max. L 45mm.
Additional options:
Counter
Date coding machine.
Gas extrusion (Nitrogen)
Specifications
Item No. |
DPCV-903X |
Voltage |
1 phase 100V, 110V, 220V, 220V, 240V |
Sealing width |
5mm or 10mm. |
Sealing speed |
0 - 10M/min. (adjustable) |
Bag total thickness |
0.06-0.5mm |
Bag size |
Max. L: 300mm, W: 300mm |
Conveyor width |
200mm |
Conveyor height adjusting range |
130mm |
Conveyor loading weight |
5 kgs |
Machine size |
1560 x 720 x 1010mm (LxWxH) |
Packing: |
1660 x 820 x 1110mm (LxWxH) |
