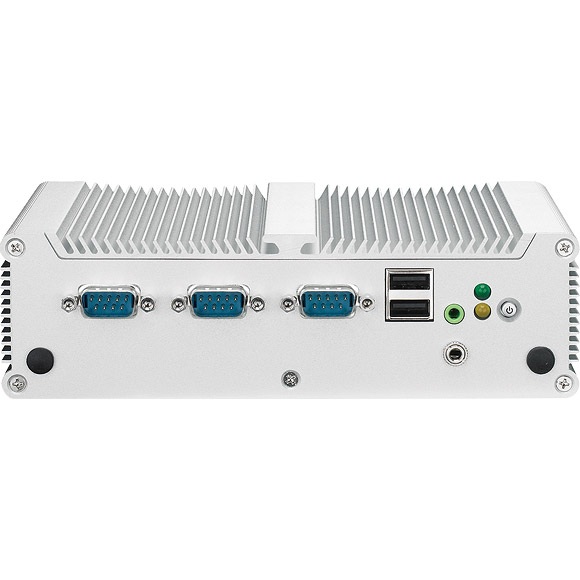

Aluminum Embedded Fanless System
Model: aTOP-D425/525/2550
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
*Fanless Micro Box System.
*Multi Display Interface.
*Multi Series Port with RS-422/485.
*12V or 9~30V different product for choice.
*Stand or Wall mount for different use.
Specifications
CPU | On-board Intel® Atom™ D525 Dual core processor, 1.8 GHz |
Chipset | Intel ICH8M |
Memory | DDR3 800 SO-DIMM sockets, single channel, support up to 2GB |
Storage | *Serial ATA 2.5” HDD Bay / *External CF Socket / *SATA DOM |
Ethernet | Intel 82574L GbE |
Expansion | N/A |
Rear I/O | *USB 2.0 ports / *Intel® GbE LAN port / *COM port: COM1, RS232 / *VGA port / *12V DC-Jack / *DB15 male digital input & output |
Front I/O | *ATX power on/off switch / *HDD access/ power status LEDs / *COM ports: (COM2: RS232/422/485; COM3& COM4: RS232) / *USB2.0 port / *Audio jack (speaker-out, Mic-in) / *Antenna holes |
Power | * DC to DC power designed for on-board support of +12V DC / *12V, 60W power adapter |
Dimension | 185x131x54 mm |
Environment | *Operating temperature: Ambient with air flow: -5°C ~ 55°C / *Storage Temp.: -20ºC - 80ºC / *Relative humidity: 10% to 93% (non-Condensing) |
