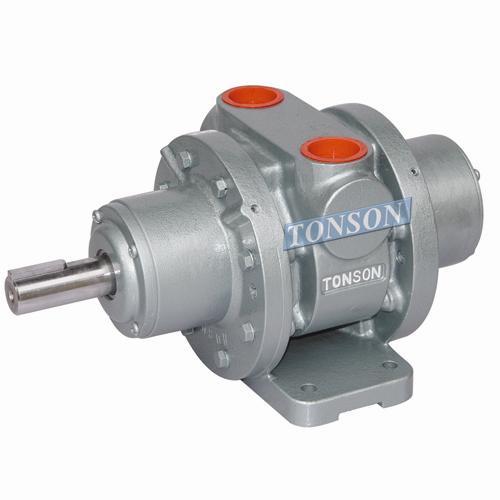

Vane Air motor
Model: V16-L
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Pneumatic Motors
Characteristics
FEATURES :
a. 100% Explosion-proof
b. Never Burn Out
c. Mounting Flexibility
d. Stalling Safety
e. Self-Sealing & Cool Running
f. All Plane Operation
g. Stepless Speed Control
h. Smooth Start
i. Toleration of Environment
Air Motors can easily operate under conditions which are unfavorable for electric, hydraulic, stepper and servo motors.
Specifications
Mounting: Foot
Performance at Maximum Speed
a. Power (HP / kW): 9.5 / 7.08
b. Torque (Nm / lbin):34 / 300
c. Speed (RPM): 2000
d. Air Consumption (l/min / CFM): 7787 / 275
Performance at Maximum Torque
Torque (Nm / lbin): 43 / 380
Speed (RPM): 300
