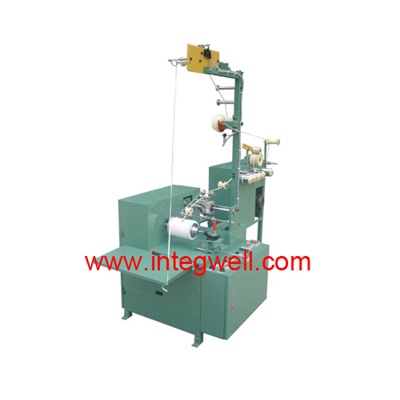

Tape Winding Machine
Model: JNRW16
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Textile Machines
Characteristics
Main Applications:
For winding elastic and non-elastic narrow tapes on bobbin with no tension.
Attachments and Features:
- Traverse motion: traverse speed and length are adjustable, ensure wind tapes smoothly
- Adopt torque motor, maintain the linear velocity of winding the same
- Yardage counter: set the tape length as requirements
- Auto stop at the time of tape breaking, knotting and meeting joint
Specifications
Model |
JNRW16 |
Suitable tape width |
< 16 mm |
Speed |
0~100 m/min |
Bobbin width |
30~180 mm |
Power |
1.5 kW |
