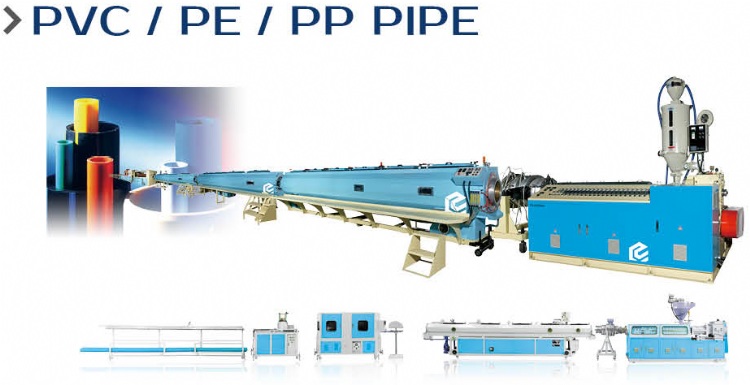

PVC / PE / PP Pipe Line
Model: EMD-90 Twin Screw Machine Line
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Soft & Rigid Plastic Pipe Making Machines
Characteristics
To internationalize our extrusion machinery and equipment, and to be the topmost manufacturer of the world extrusion field has always been our major target. With endless endeavor, we strive to develop the excellent quality of extrusion machinery and to provide the most competitive & high-added value equipments to our customer that creates the mutual win-win situation eventually. Our best guiding principle of management would build on “trust” by our customers. Furthermore, the satisfaction from our customers has always been our most valued service-oriented motto. We believe our vision would bring mutual constructive & profitable future to our customers.
Specifications
A. EMD-90 Twin Screw Extruder
1. GEAR BOX
-motor: 60 HP AC with inverter
2. SCREW
- dia.: 90m/m x 2 sets ; L/D: 24:1
- material: SACM-645 alloy Steel nitrided surface treatment. HRC55, depth 0.5mm
- screw r.p.m.: max. 42 r.p.m.
3. ELECTRICAL CONTROL
- temp. controller total: 9 zones
barrel – 3 zones
adapter – 1 zone
die head – 5 zones
B. EPST 2-6 VACUUM SPRAY WATER COOLING TANK
- pipe range: 2”- 6”
- Motor: vacuum: 3 HP 1 set, water pump: 5 HP × 1 set
C. EPS 2-6 SPRAY WATER COOLING TANK
- pipe range: 2”- 6”
- Motor: water pump: 5 HP × 1 set
D. ETK3C 3 CATERPILLARS HAUL-OFF UNIT
- pipe size: 60 – 280mm
- caterpillar type:
- effective track length: 1200 m/m
E. ERK-160 RIGID PIPE CHAMFERING & CUTTING
- cutting dia: dia 60-160 mm
- cutting wall thickness : min.2 mm; Max.8 mm
F. BELLING MACHINE
- pipe range:
