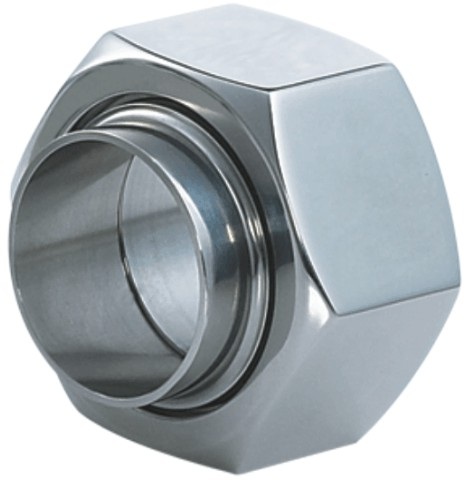

Hygienic IDF complete Union
Model: ft1002
Category: Machinery Parts and Components / Piping Systems (Pipes, Valves, Fittings) / Stainless Steel Pipes & Tubes
Characteristics
IDF ( International Dairy Federation ) sometimes referred to as ISS, ( International Sanitary Standard )
was introduced in the Sixties as the successor to RJT because of its crevice free assembly. It can be recognised by the wide hexagon nut or T section joint ring. The joint ring locates on both liner and male part but does not tend to stay in place when the union is disassembled, and can prove awkward. In cases where the union is dismantled frequently, the use of the L section joint ring will alleviate the problem as the joint ring will locate on one half IDF union parts conform generally to BS 4825 part 4
Crevice free
16 Bar working pressure
316 SS wetted parts
wide range of seal materials available, Nitrile, Silicone, EPDM, PTFE
size range 1" – 4"
Specifications
IDF ( International Dairy Federation ) sometimes referred to as ISS, ( International Sanitary Standard )
was introduced in the Sixties as the successor to RJT because of its crevice free assembly. It can be recognised by the wide hexagon nut or T section joint ring. The joint ring locates on both liner and male part but does not tend to stay in place when the union is disassembled, and can prove awkward. In cases where the union is dismantled frequently, the use of the L section joint ring will alleviate the problem as the joint ring will locate on one half IDF union parts conform generally to BS 4825 part 4
Crevice free
16 Bar working pressure
316 SS wetted parts
wide range of seal materials available, Nitrile, Silicone, EPDM, PTFE
size range 1" – 4"
