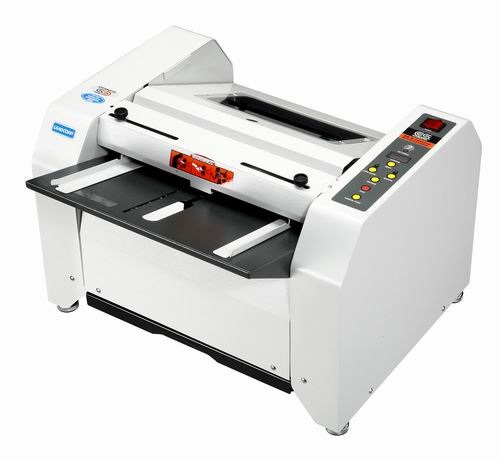

Booklet Maker
Model: CS2
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1. Staple and fold in one step
2. Micro-Adjust of Paper Lenth, Clear window as monitor of operation, Staple & tools storage drawer, One free box of 26/6 Staple(5,000 staples), Two free Staple Pusher, One free Lubricant Pot, Optional Foot Pedal
Specifications
Staple Type: 26/6, 26/8 or Ri26/6
Max. Number of Sheets: 2~ 20 sheets; 80 pages (70 gsm paper)
Sheet Dimension: Min. A5 (148.5 x 210 mm) ~ Max. A3 (297 x 420 mm)
Booklet Dimension: Min. A6 (105 x 148.5 mm) ~ Max. A4 (210 x 297 mm)
Staple Heads: (1) Standard - 2, Max. - 4
(2) Standard - 3, Max. - 5
Staple Heads Distance: (1) 80mm & 180mm
(2) 54mm & 108mm
Staple Capacity: 210 staples
Productivity: “Staple” only or “Fold & Staple”
Staple Capacity: Up to 800 booklets per hour
Voltage Type: 115VAC/60Hz or 230VAC/50Hz
Motor Type: Continuous Running Type Induction Motor-Wire Lead Model
Key Components: Operation Counter, Indicator for short of staple, Sensor of No-paper inside, On/Off Switch & Reverse Switch, Safety Switch, IR activate sensor, Digital Control Panel
Accessory: Micro-Adjust of Paper Lenth, Clear window as monitor of operation, Staple & tools storage drawer, One free box of 26/6 Staple(5,000 staples), Two free Staple Pusher, One free Lubricant Pot, Optional Foot Pedal
