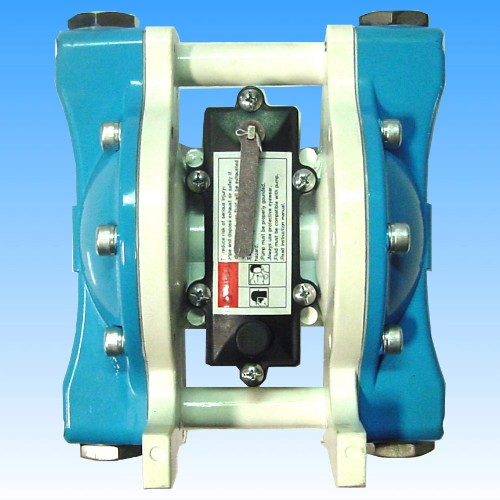

Air-Operated D.D. Spray Pump
Model: D04-ATSS-11
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Motors and Pumps
Specifications
Pressure Ratio : 1:1
Max. Continuous Flow : 6.5GPM (24.6 lpm)
Output Per Cycle : 76 c.c.m
Air Motor Repair Range : 10 ~ 100 psi
Max. Air Consumption : 12 scfm
Max. Paint Output Pressure : 100 psi
Max. Air Valve Speed : 330 cpm
Pump Material : Aluminum Alloy
Diaphragm material : Teflon / U.P.E
Air Inlet Size : 1/4” pt (f)
Fluid Outlet Size 1/2” pt (f)
Fluid Inlet Size : 1/2” pt (f)
Suction Lift to : Dry : 3.7m (12ft)
Pumpable Solids to : 1.6mm (1/16 in)
Temperature Conditions : 4.4 – 100 ˚C
Noise Level : 80dB (A)
Pump Dimensions(mm) : L175 x W130 x H207
Net Weight(Bare Pump) : 4.0kg
