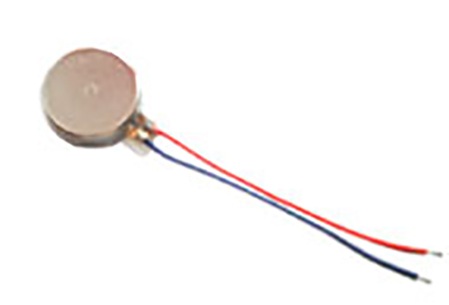

coin vibration motor
Model: RIC-F1020
Category: Machinery Parts and Components / Machinery Parts and Components / Motors
Characteristics
Nominal: 3V
Diameter:10mm
Thickness:2mm
RIC have another types: Diameter 8mm,thickness3.4mm
Dimeter 10mm, thickness:3.4mm,2.7mm
Diameter 12mm,thickness:2.0mm, 3.4mm,2.7mm
Specifications
MOTOR SPECIFICATIONS
Model | RIC-F1020-L40 | |
---|---|---|
Operating Range | V | 2.5~4 |
Nominal | V | 3 |
Rated Speed | rpm | 11500 |
Rated Current | mA | 80 |
Start Voltage | V | 2.3 |
Stall Current | mA | 120 |
Resistance | Ω | 33 |
