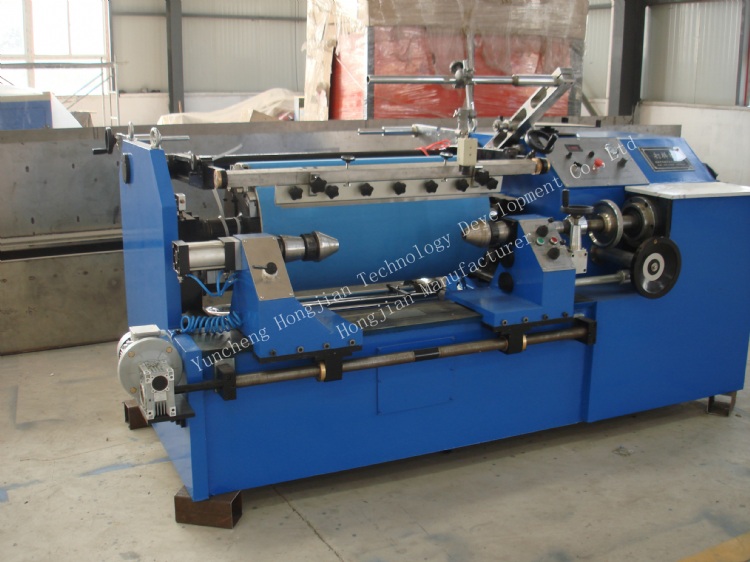

prepress proofing machine/gravure cylinder proofing machine
Model: HJ-DYJ
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Rotogravure Printing Press
Characteristics
1 Proofing speed can be displayed and controlled.
2 Proofing pressure can be displayed and controlled.
3 Squeegee pressure can be displayed and controlled.
4 Squeegee Angle can be displayed and controlled.
5 The proofing success rate is improved, reducing the rework rate.
6The shallow network transfer rate is improved. More than 3% of network can be transferred.
Specifications
New generation automatic proofing machine is to test and proof rotogravure cylinders after engraving, to check its correct pattern and get customers approval. To proof gravure cylinders used both shafted and hollow cylinders.
High-end proofing machine is a new generation automatic proofing machine upgraded from the old style, which combines the past experience of designer and intelligent CNC technology development. The machine is operated by a industrial touch-screen computer. It adopts imported linear guide, imported bearing ABB dynamo, and SMC pneumatic element. Particularly suitable for plastic, paper, leather, PVC, plastic and plastic packaging printing roller proofing, suitable for gravure business, decoration materials production enterprises, gravure packaging printing enterprises, wallpaper production enterprises, printing ink production enterprises.
1 Proofing speed can be displayed and controlled.
2 Proofing pressure can be displayed and controlled.
3 Squeegee pressure can be displayed and controlled.
4 Squeegee Angle can be displayed and controlled.
5 The proofing success rate is improved, reducing the rework rate.
6 The shallow network transfer rate is improved. More than 3% of network can be transferred.
Technical parameters:
Parameter |
Remarks |
|
Proofing cylinder length |
300-3000mm |
According to the requirements of adjustment. |
Proofing cylinder diameter |
90-600mm |
According to the proofing requirements can be adjusted |
Roller speed ( sampling rate ) |
Adjustable |
Through the converter stepless speed regulation |
Printing roller speed ( wash speed version ) |
80-180sr/min |
Can be customized according to customer requirements |
Top one-way movement speed |
559mm/min |
Can be customized according to customer requirements |
Proof pressure |
1.0-1.5t |
Through the pressure regulating valve adjustment |
Trimming trip |
±40mm |
Can be customized according to customer requirements |
