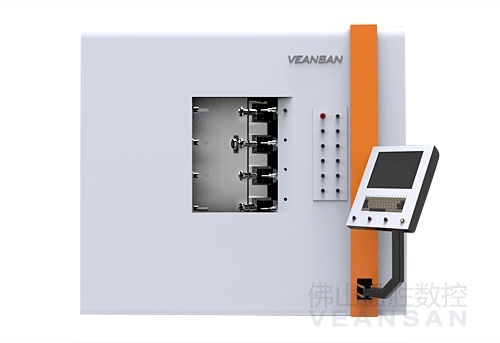

shoelast machine
Model: YS-203C+
Category: Mold and Die Industry / Plastic Molds / Machinery & hardware
Characteristics
YS-203C+, with 4 beltless cutters, is known as the king of cost-performance in Veansan's products. It can process 2 pairs of shoe lasts within only 5 minutes. Featuring small investment and large output, one unit of machine is able to complete all processing steps of shoe lasts.
Model¡GYS-203C
System Version¡G4.095
Station Number¡G4(2 pairs)
System Storage Device¡GMilitary grade DOM disk, which is more stable than the traditional HDD. With system-protection design, it will be protected in the event of sudden power failure.
Cutter Shaft¡GNational patented direct connection cutter shaft. High-speed actuating motor and direct connection design, which addresses the problem
of belt fracture and is more stable than traditional shoe last machine.
Every actuating motor control one cutter shaft with rotation speed of 9500 rpm.
Processing Method
Back-and-forth. The whole process will be completed in 5 minutes
Scanning Method
The scanning device is installed inside the machine. Therefore, you do not have
to purchase scanner. The scanning resolution is 1£gm.
Grading Range¡G¡Ó 5 sizes
Processing Length¡G50mm - 400mm
Format Supported¡GSTL IGS MOD NC
Max Processing Speed¡G65 rpm
Actual Power¡G6KW-----9KW
Total Power¡G9 KW
Touch screen ¡GNot Support
Dimension¡G2130mm L X 1500mm W X 2130mm H
